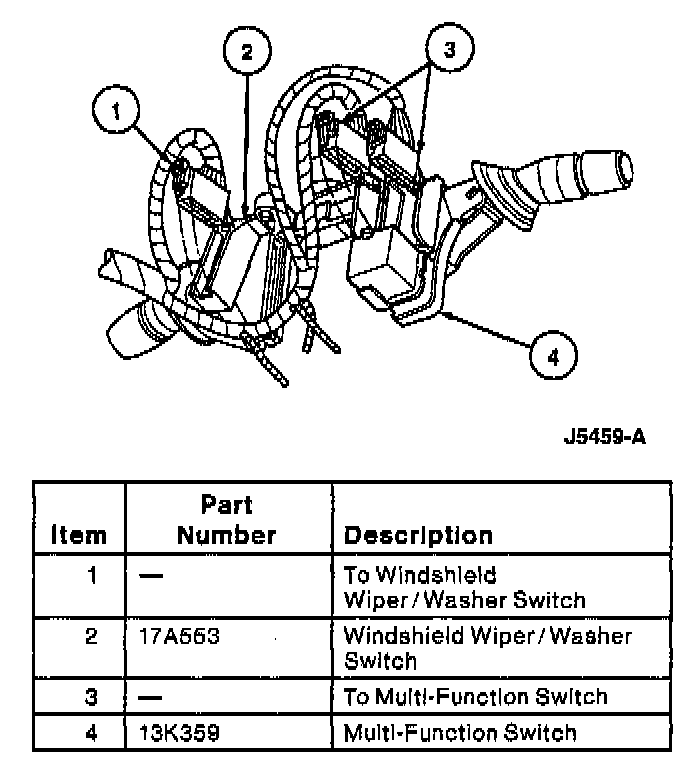

Turn Signal Switch: Service and Repair

NOTE: Some illustrations in this procedure have steering wheel shown removed for clarity. It is not necessary to remove the steering wheel for switch service.

1. Disconnect battery ground cable.
2. Remove two screws and steering column upper shroud.
3. Depress the multi-function switch locking tab.
4. Slide multi-function switch up and off of steering column.





5. Depress locking tabs on multi-function switch electrical connector and remove from the multi-function switch.
6. To install, reverse Removal procedure.
