Illuminated Entry Interior Lamp Switch

REMOVAL
1. Disconnect battery ground cable.
2. Remove door trim panel.
3. Disconnect door lamp switch from wiring harness.

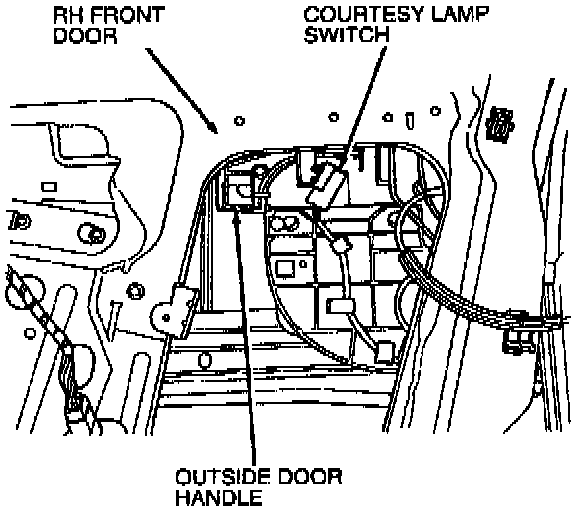

4. Pull upward on bottom of door lamp switch and rotate off from door handle.

INSTALLATION
1. To install, reverse Removal procedure.
