Brake Light Switch: Service and Repair

REMOVAL
1. Disconnect battery ground cable.






2. Disconnect the wiring to the stoplight switch.

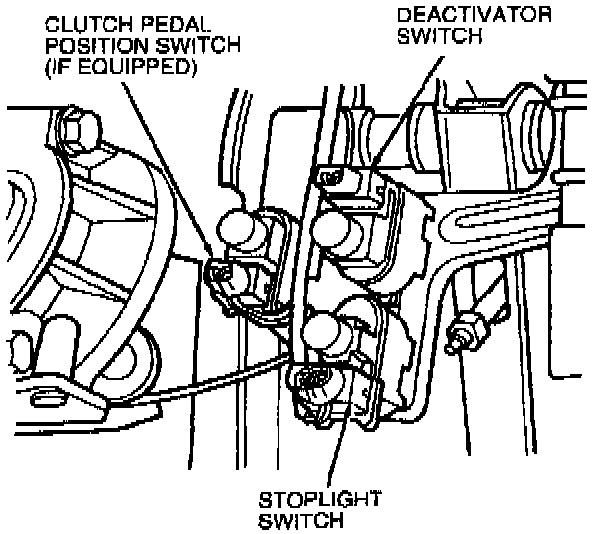

3. Rotate the stoplight switch 90 degrees counterclockwise and pull toward rear of vehicle. Remove stoplight switch.

INSTALLATION
1. To install, reverse Removal procedure.
