Home >> Mercury >> 1997 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Dimmer Switch >> Service and Repair

Dimmer Switch: Service and Repair

REMOVAL

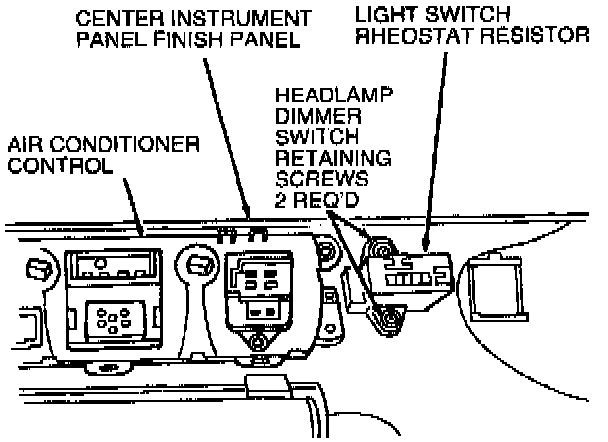

1. Remove center instrument panel finish panel.
2. Remove two screws retaining light switch rheostat resistor to center instrument panel finish panel and remove rheostat.

INSTALLATION
1. To install, reverse Removal procedure.
