A/C Pressure Cut-Off Switch

REMOVAL
1. From inside the vehicle, pull hood lock release handle to release hood.
2. Lift hood and support with hood support rod.
3. Remove pressure cut-off switch electrical connector.

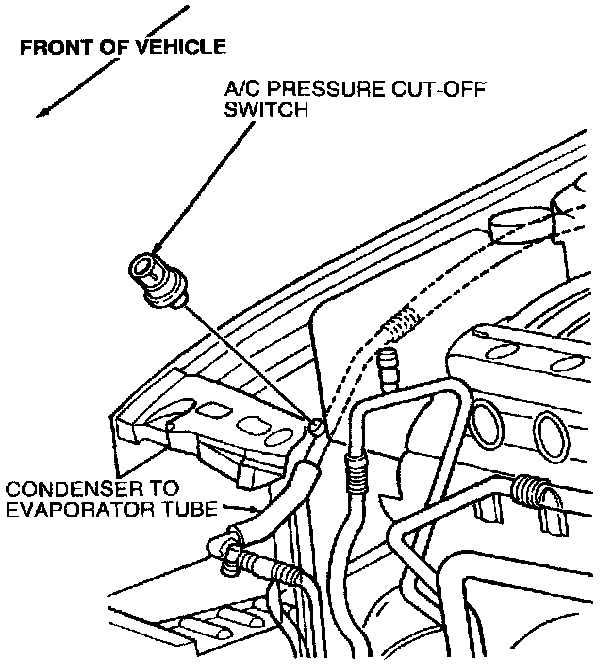

4. Remove A/C pressure cut-off switch from the condenser to evaporator tube.

INSTALLATION
1. To install, reverse Removal procedure.
2. Use new O-ring seals lubricated with clean Motorcraft YN-12b refrigerant oil or equivalent meeting Ford Specification WSH-M1C231-B.
3. Use only Specified O-ring seals at spring lock coupling.
