A/C Cycling Switch

REMOVAL
1. From inside vehicle, pull hood lock release handle to release hood.
2. Lift hood and support with hood support rod.
3. Remove battery.

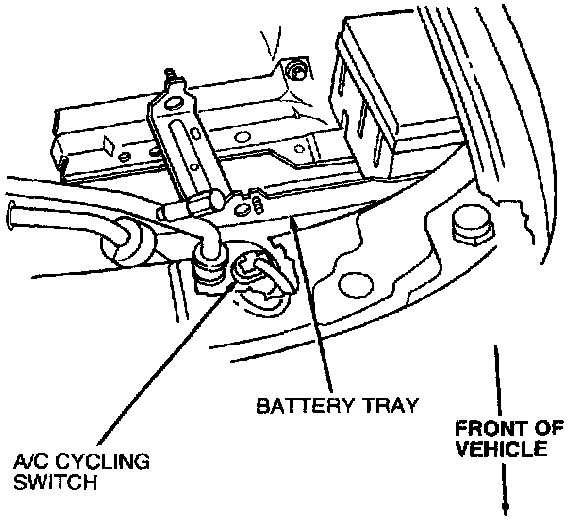

4. Remove power distribution box and battery tray to improve access to A/C cycling switch.
5. Disconnect the wire harness connector from the A/C cycling switch.
6. Unscrew the A/C cycling switch from the top of the suction accumulator/drier.

INSTALLATION
1. Lubricate the C-ring seal on the suction accumulator/drier nipple with clean Motorcraft YN-12b refrigerant oil or equivalent meeting Ford Specification WSH-M1C231-B.
2. Screw the A/C cycling switch on the suction accumulator/drier nipple and hand-tighten.
3. Connect the wire connector to the A/C cycling switch.
4. Install battery tray and power distribution box.
5. Install battery.
6. Check the A/C cycling switch installation for refrigerant leaks.
7. Check the system for proper operation.
