Electronic Brake Control Module: Diagrams

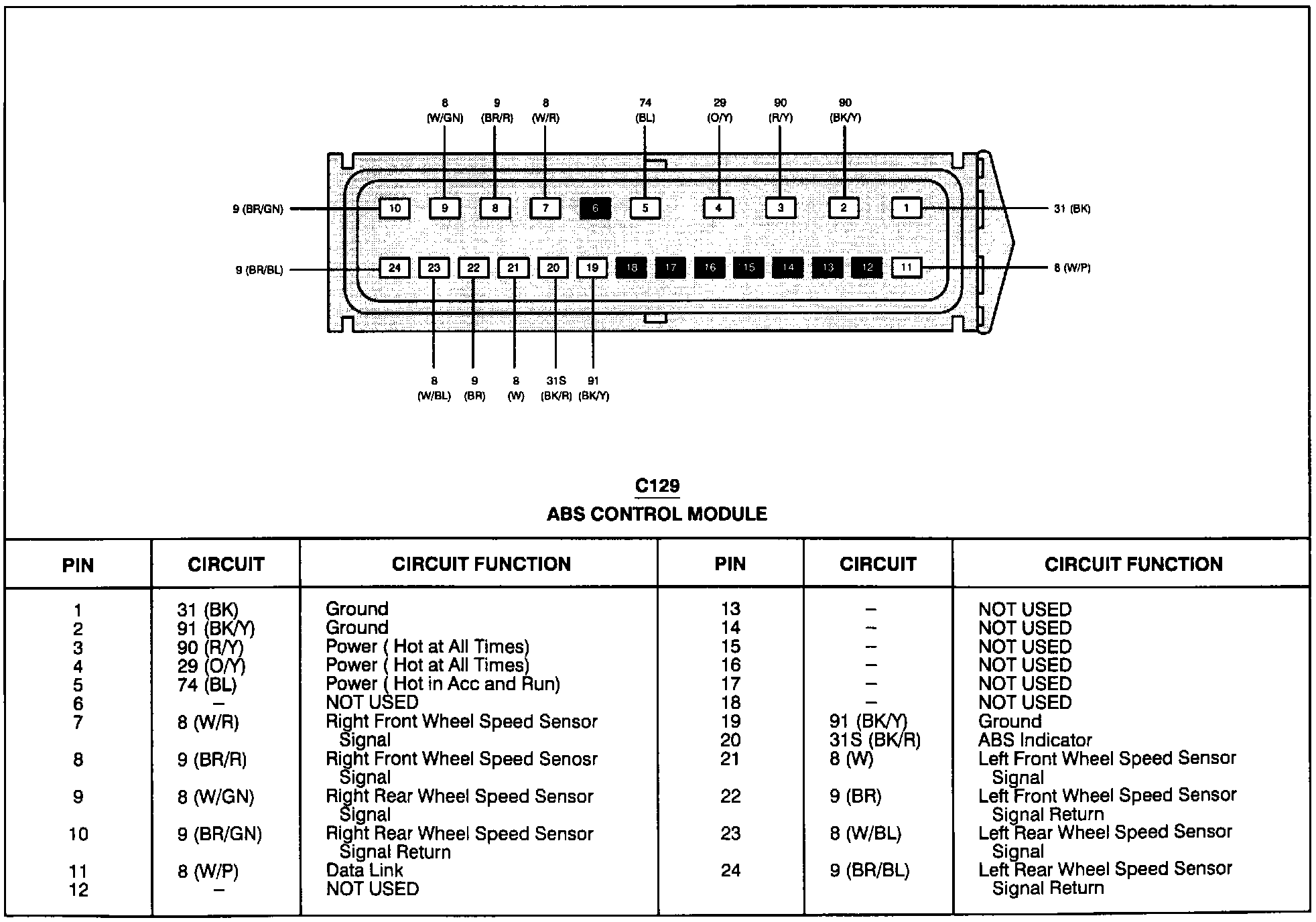

Anti-Lock Brake System Control Module:

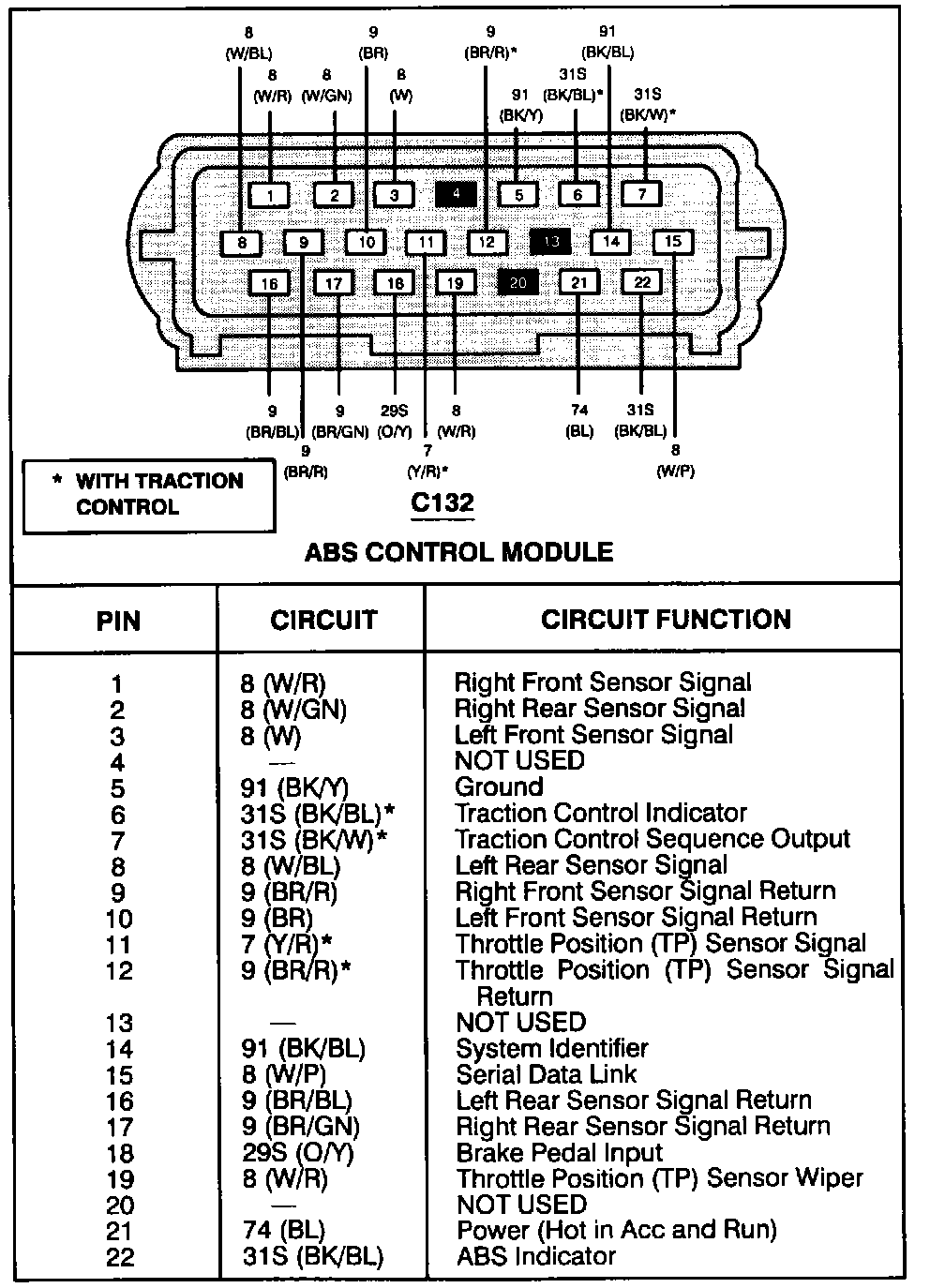

Anti-Lock Brake System Control Module:
