ABS Main Relay: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the power brake booster. Vacuum Brake Booster
3. Raise and support the vehicle.
4. Disconnect the two electrical connectors.

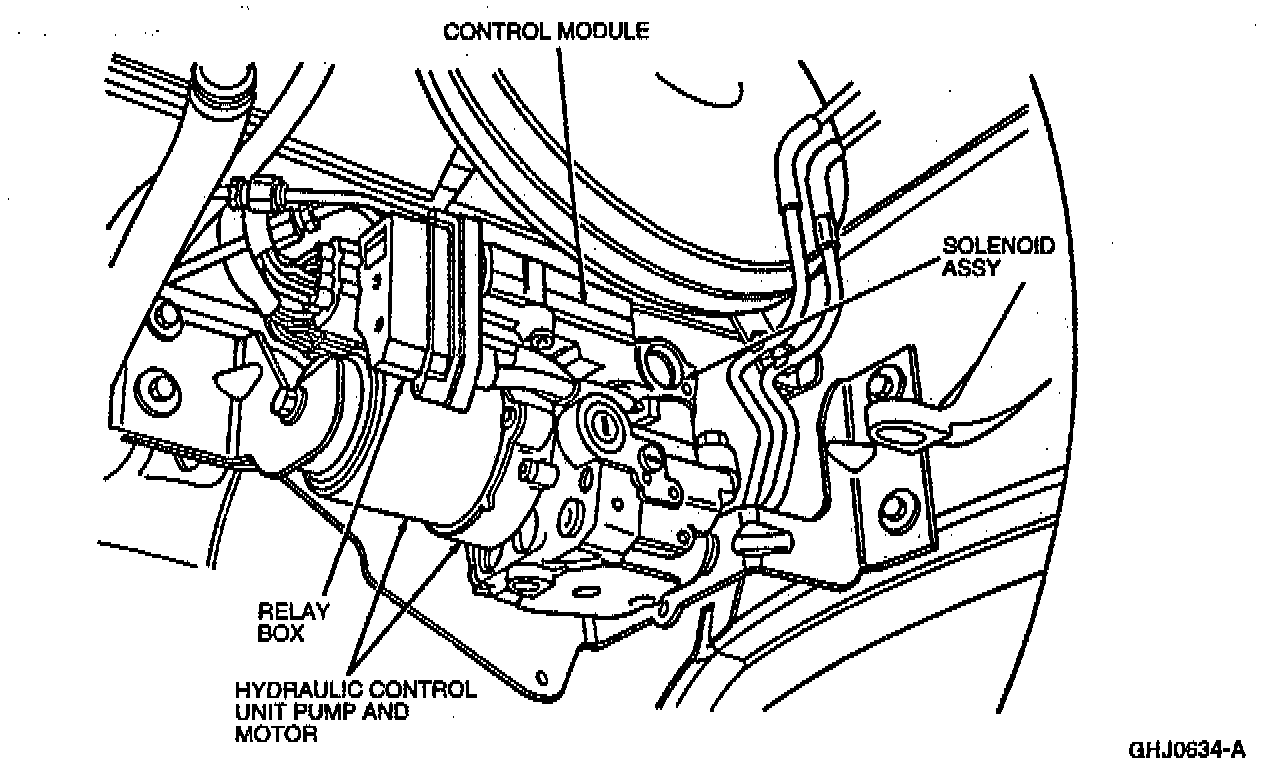

5. Remove the three screws and the relay.

INSTALLATION
1. Install the relay box and the three screws.
2. Connect the two electrical connectors.
3. Lower the vehicle.
4. Install the power brake booster and bleed the brake system.
5. Connect the battery ground cable.
