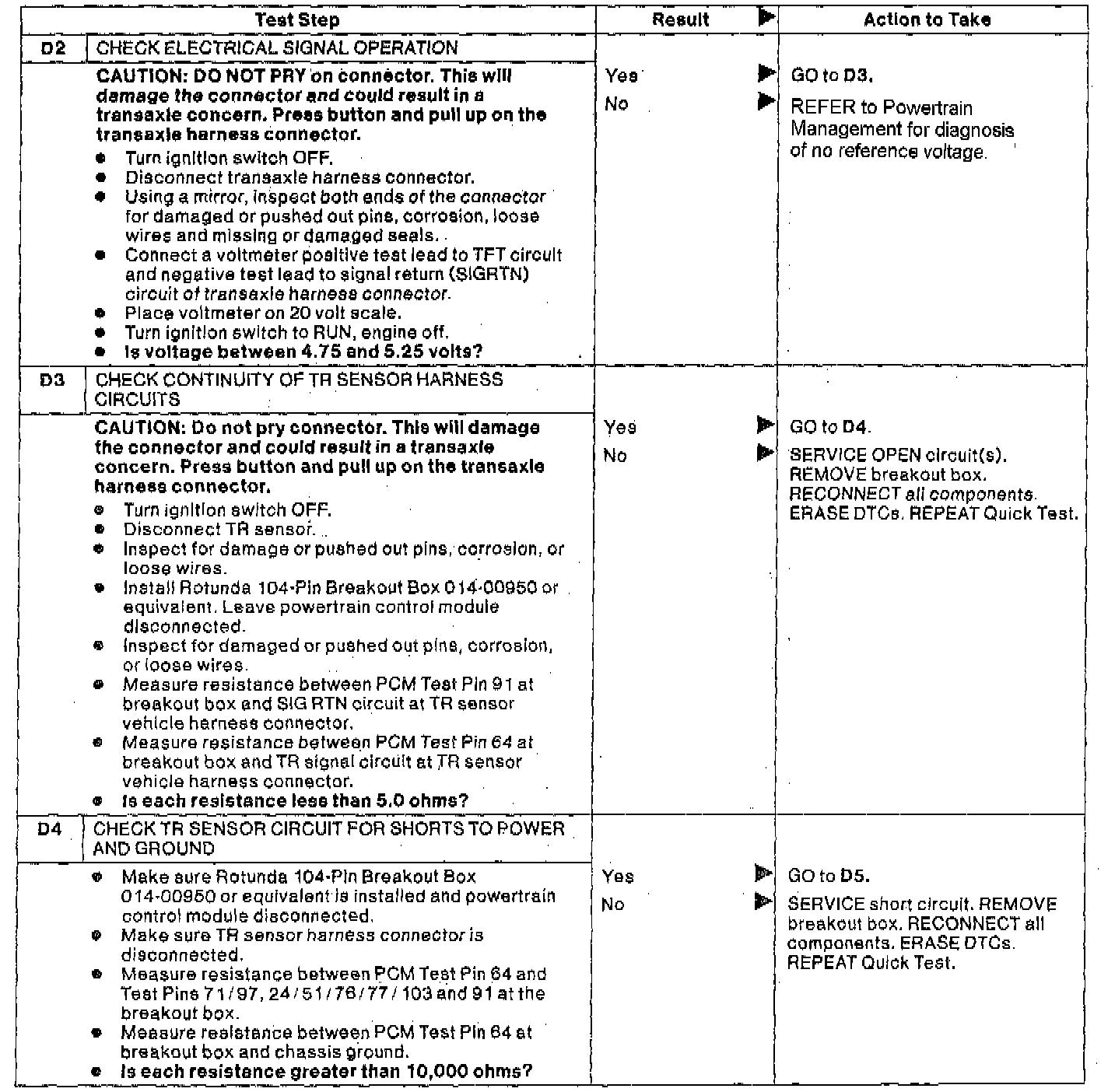

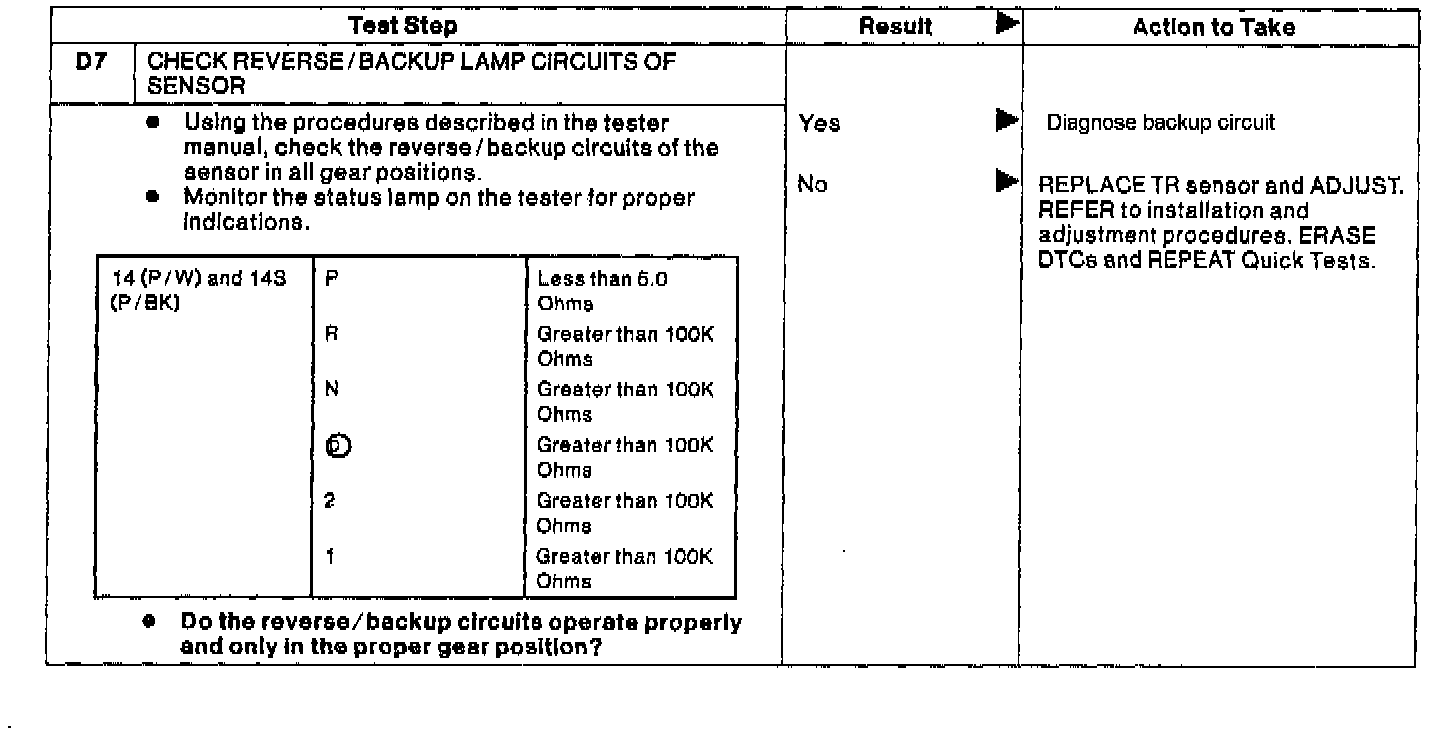

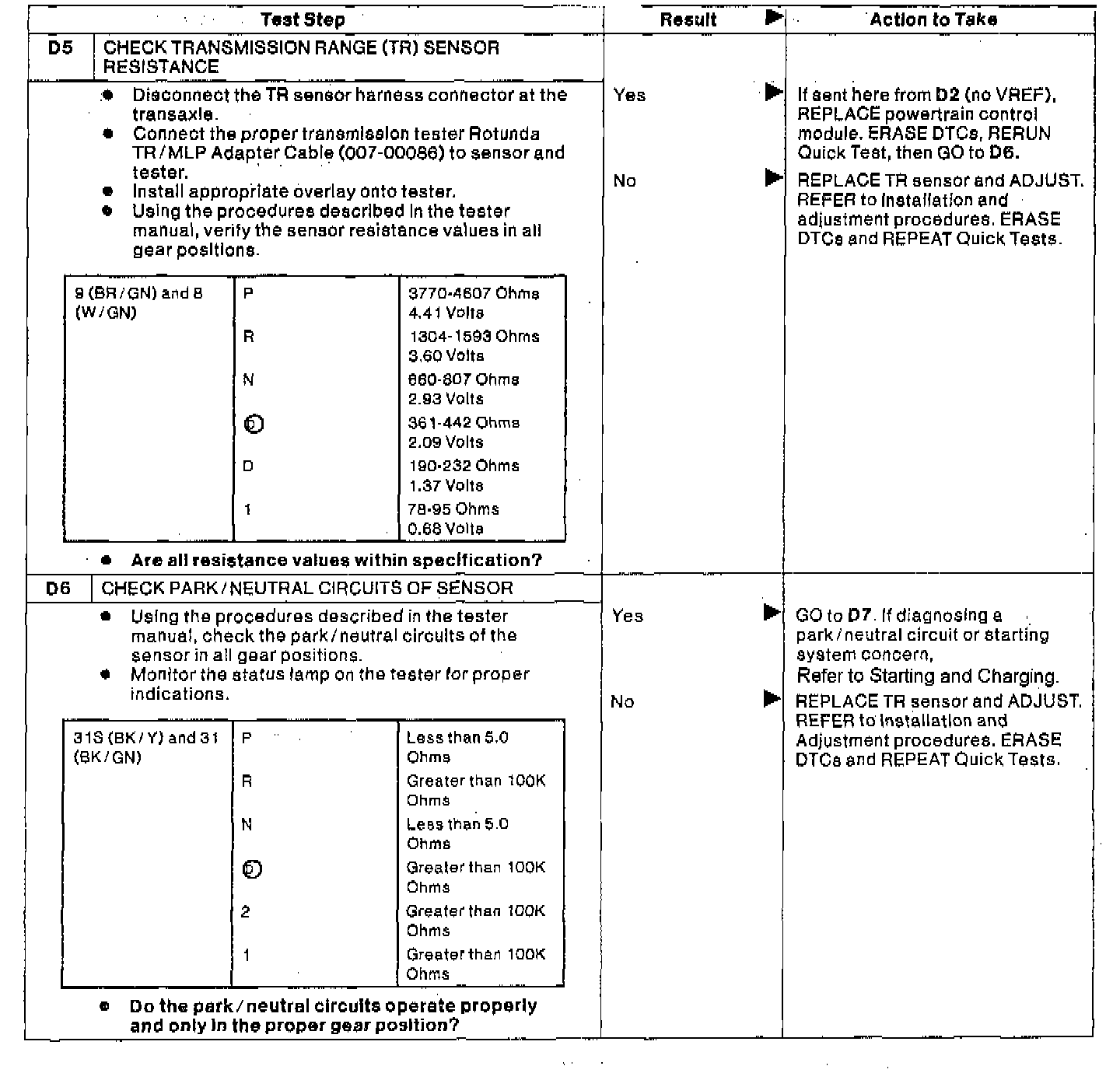

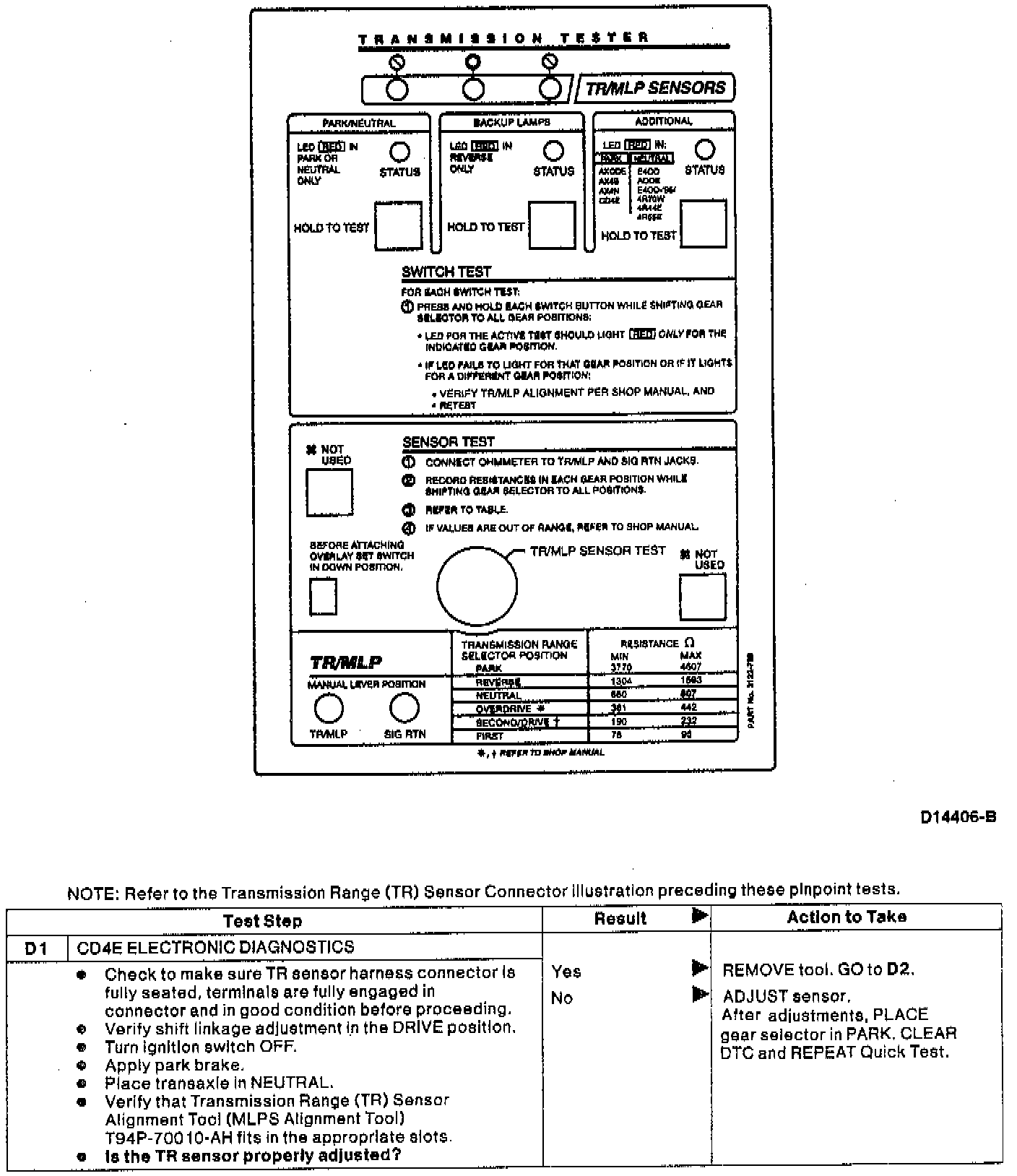

D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

Part 1 Of 2:

Part 2 Of 4:

Part 3 Of 4:

Part 4 Of 4:

This pinpoint test is designed to diagnose the transmission range (TR) sensor electrical system ONLY. To prevent replacement of good components, note that the following areas may be of concern:
- engine-starter, starter relay
- electrical-battery, ignition switch, wiring harnesses
- transaxle-internal transaxle components, linkages

This pinpoint test is designed to diagnose the following components:
- transmission wiring harness, TR sensor, signal return
- powertrain control module
