Removal and Installation

REMOVAL

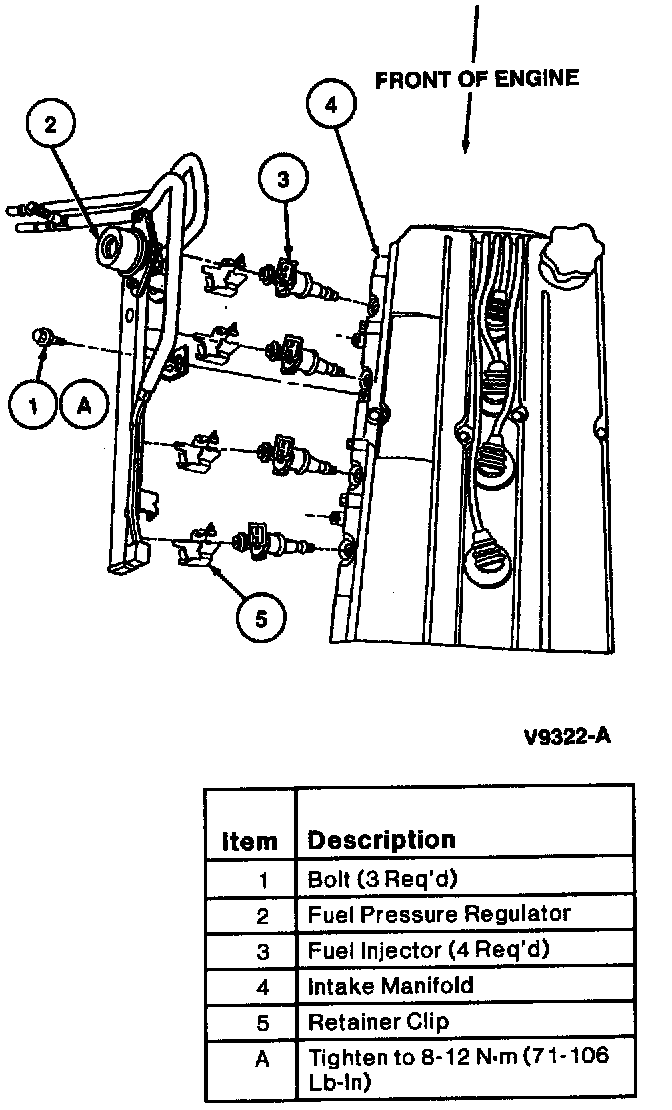

1. Perform fuel pressure release procedures.
2. Remove fuel injection supply manifold.
3. Remove fuel injector and retaining clip from fuel injection supply manifold.
4. Remove retaining clip from fuel injector.
5. Inspect fuel injector O-rings (two per fuel injector) for signs of deterioration. Replace as required.
6. Inspect fuel injector end cap and body for signs of dirt and deterioration.

INSTALLATION






1. Lubricate new O-rings lightly with clean engine oil XO-10W30-QSP or -DSP or equivalent meeting Ford specification ESE-M2C153-E.

CAUTION: Never use silicone grease. It will clog the Injectors.

2. Install fuel injector retainer clip to fuel injectors.
3. Install fuel injectors to fuel injection supply manifold with light twisting pushing motion.
4. Install fuel injection supply manifold as described.

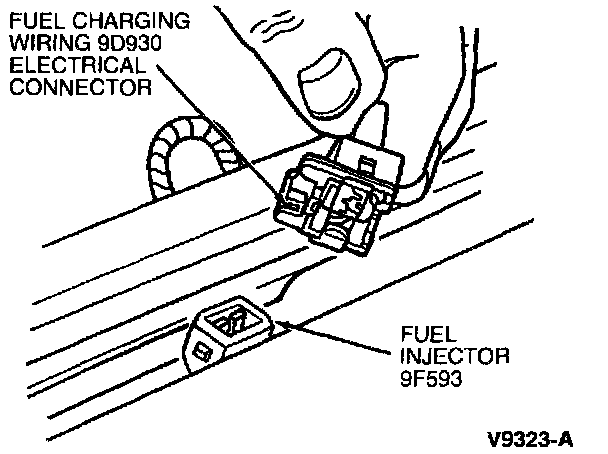

5. Install connectors from fuel charging wiring to fuel injectors.
6. Perform fuel pressure release/post service procedures.
