Turn Signal Flasher: Service and Repair

REMOVAL
1. Disconnect battery ground cable.
2. Remove screws retaining lower steering column shroud to upper steering column shroud. Remove shrouds.

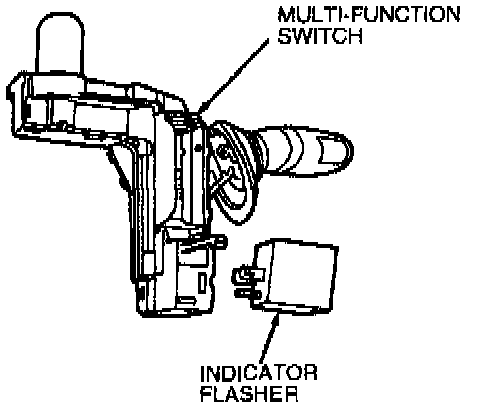

3. Pull [1][2]indicator flasher straight outward from backside of multi-function switch.

INSTALLATION
1. To install, reverse Removal procedure.
