Trunk Lamp: Service and Repair

REMOVAL
1. Disconnect battery ground cable.

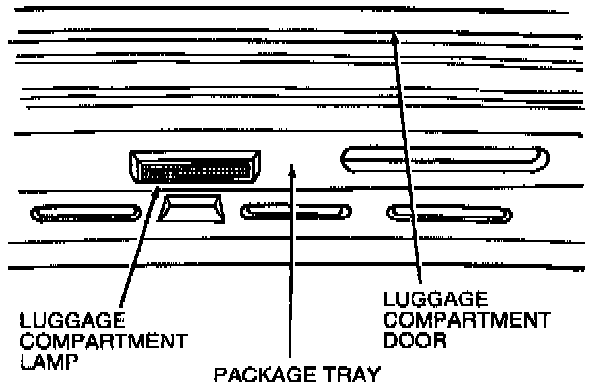

2. Carefully pry luggage compartment interior lamp from upper package tray panel.
3. Disconnect wiring harness from luggage compartment interior lamp. Remove interior lamp.

INSTALLATION
1. To install, reverse Removal procedure.
