Removal and Installation

1. Refer to appropriate lamp Removal and Installation procedure to access bulb(s).

NOTE: Make sure appropriate lamp switch is OFF.

2. Two types of bulb sockets are used for most exterior illumination.

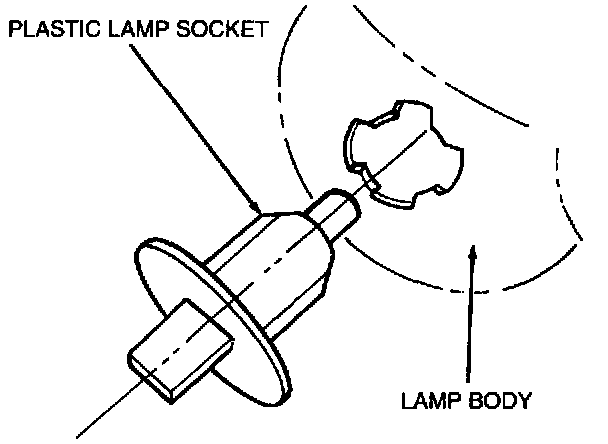

^ Standard plastic socket.






^ Three-tab type.

To remove the plastic socket assembly, turn the socket counterclockwise to the stop and remove the socket.

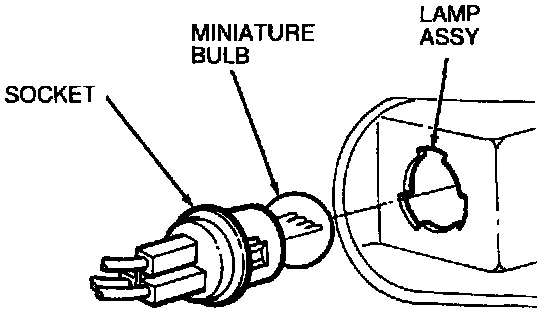

3. Pull miniature bulb straight out of socket.
4. To install, align miniature bulb and push straight into socket.
5. Index the smallest tab for locating the socket and rotate the socket clockwise to the stop.
