Bulb-Map Lamp

REMOVAL

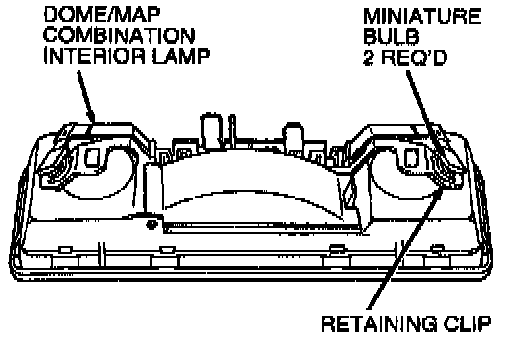

1. Remove dome/map combination interior lamp.






2. Release clips retaining map lamp miniature bulb.
3. Remove map lamp miniature bulb.

INSTALLATION
1. To install, reverse removal procedure.
