Trunk Lamp Switch: Service and Repair

REMOVAL
1. Disconnect battery ground cable.
2. Pull luggage compartment door weatherstrip loose at lower luggage compartment door opening.
3. Remove rear luggage compartment trim panel.

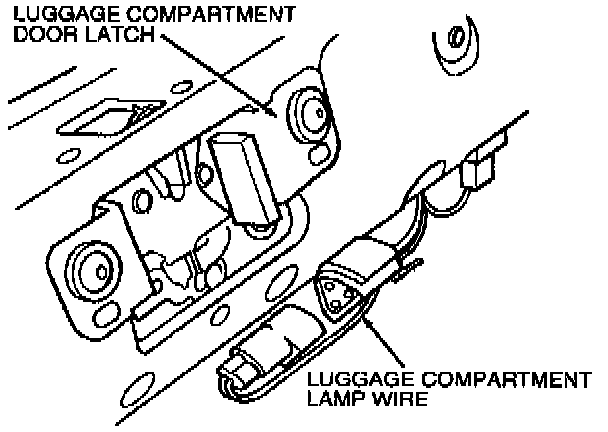

4. Disconnect luggage compartment lamp wire to luggage compartment lamp switch.

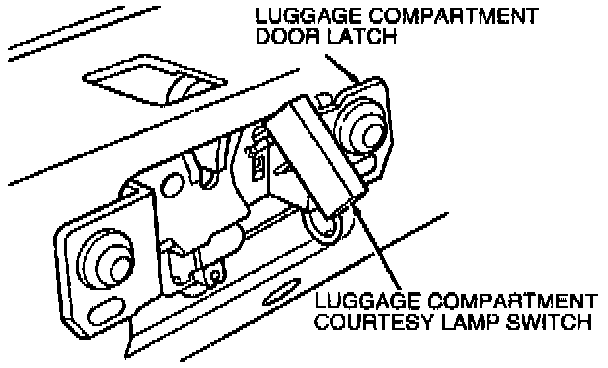

5. Pull outward on bottom of luggage compartment lamp switch and rotate away from luggage compartment door latch.
6. Feed luggage compartment lamp wire through luggage compartment door latch opening.
7. Remove luggage compartment lamp switch.

INSTALLATION
1. To install, reverse Removal procedure.
