Fog Lamp Assembly

REMOVAL
1. Remove radiator air deflector.
2. Disconnect wiring harness to front fog lamps.

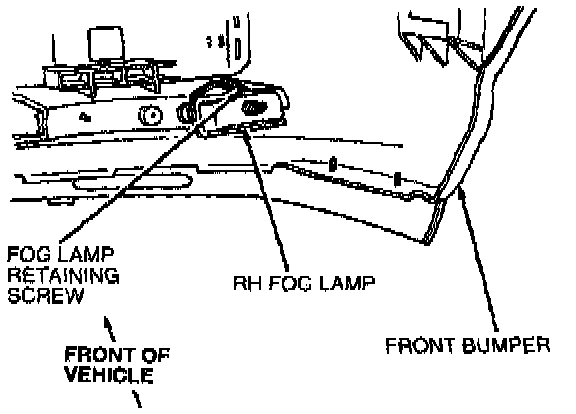

3. From behind front bumper cover remove the screw retaining each fog lamp to front bumper cover and remove lamp.

INSTALLATION
1. To install, reverse Removal procedure.
2. Tighten screws to 3 Nm (25-26 in lb).
