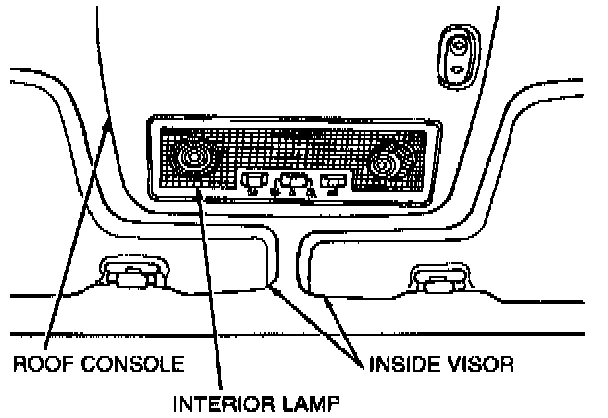

Dome/Map Lamp Combination Housing

REMOVAL
1. Disconnect battery ground cable.






2. Carefully pry rear edge of interior lamp from roof console.
3. Disconnect interior lamp from wiring harness.
4. Remove interior lamp.

INSTALLATION
1. To install, reverse Removal procedure.
