Courtesy Door Lamp Assembly

REMOVAL
1. Disconnect battery ground cable.

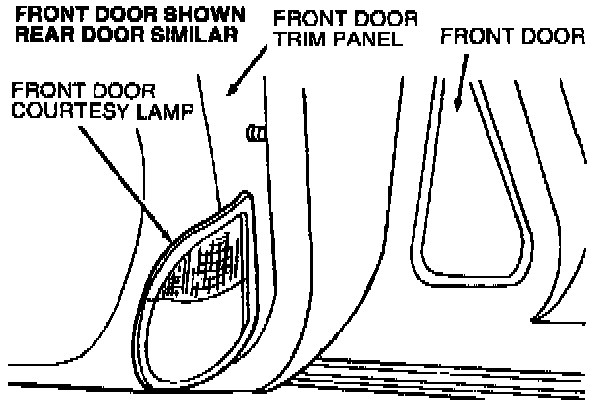

2. Insert flat-bladed screwdriver between courtesy interior lamp and door trim panel at top of interior lamp. Gently twist screwdriver and pry courtesy interior lamp from door trim panel.
3. Remove socket and miniature bulb and remove courtesy interior lamp.

INSTALLATION
1. To install, reverse Removal procedure.
