Backup Light Bulb: Service and Repair

REMOVAL

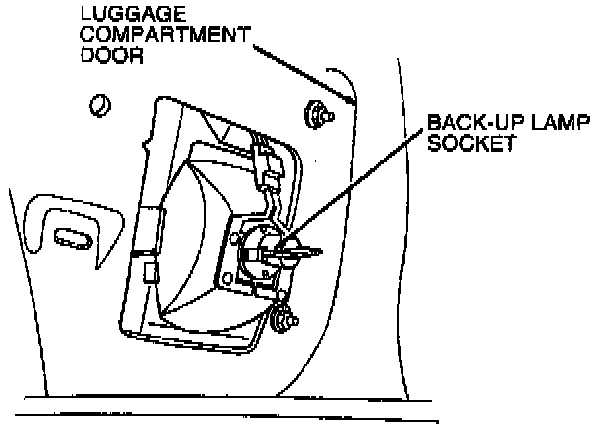

1. Turn backup lamp bulb socket 1/4 turn and remove.
2. Pull backup lamp miniature bulb straight outward from backup lamp socket.

INSTALLATION
1. To install, reverse Removal procedure.
