Removal and Installation

REMOVAL
1. Disconnect battery ground cable.
2. Remove instrument panel finish panel.

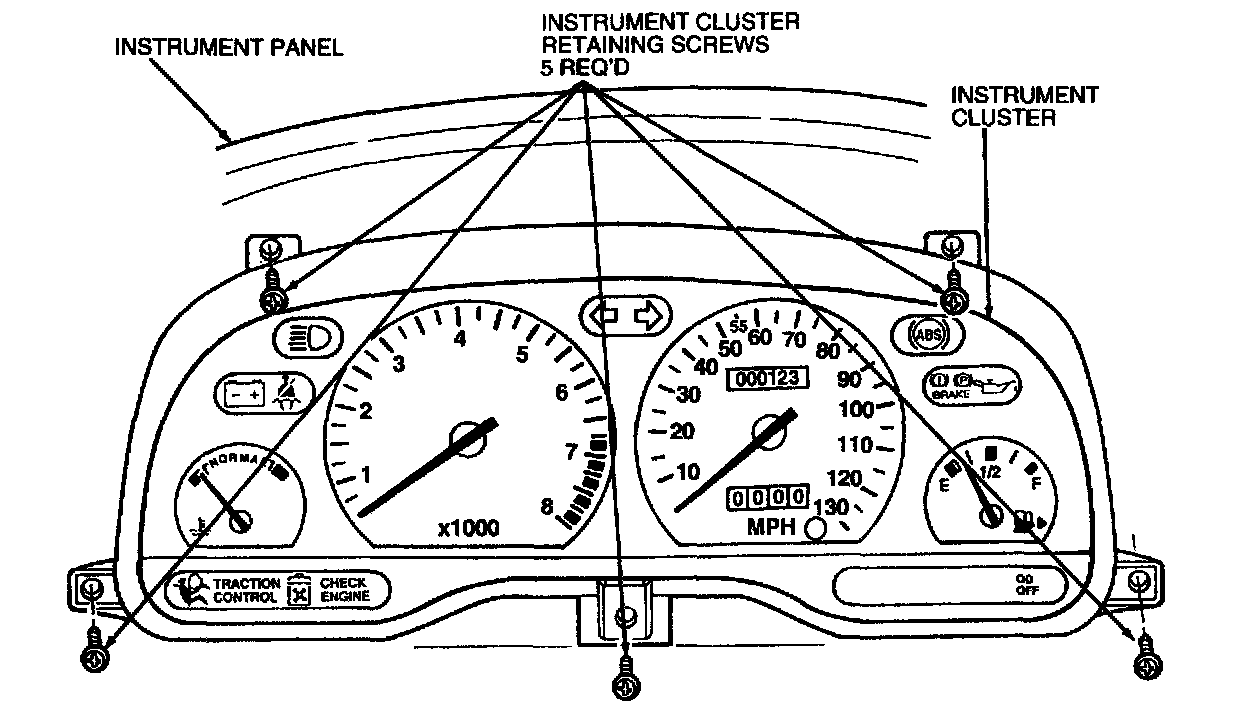

3. Remove five retaining screws from instrument cluster.
4. On non-tilt wheel models, the steering column must be lowered to gain clearance to remove instrument cluster.

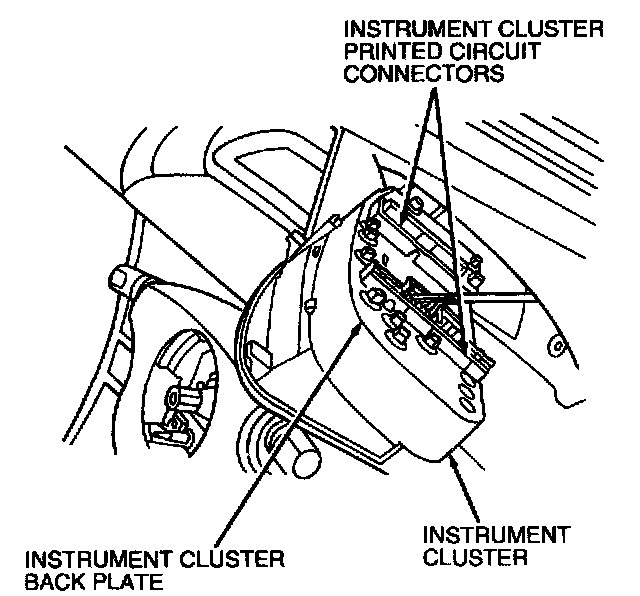

5. Pull the instrument cluster away from the instrument panel. Disconnect the two cluster printed circuit connectors from the instrument cluster back plate.
6. Remove instrument cluster.

INSTALLATION
1. To install, reverse removal procedure.
