Instrument Cluster

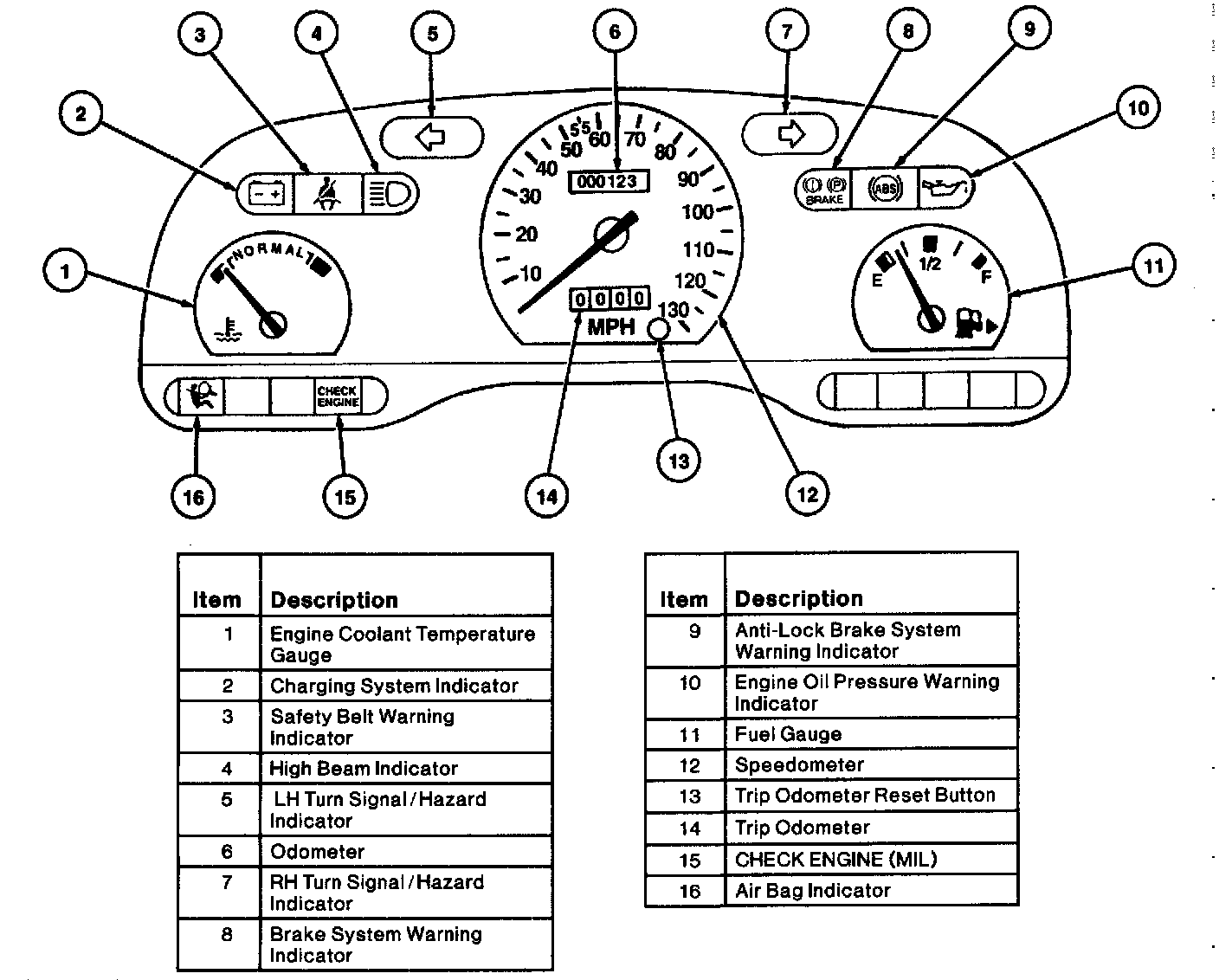

Standard Instrumentation:

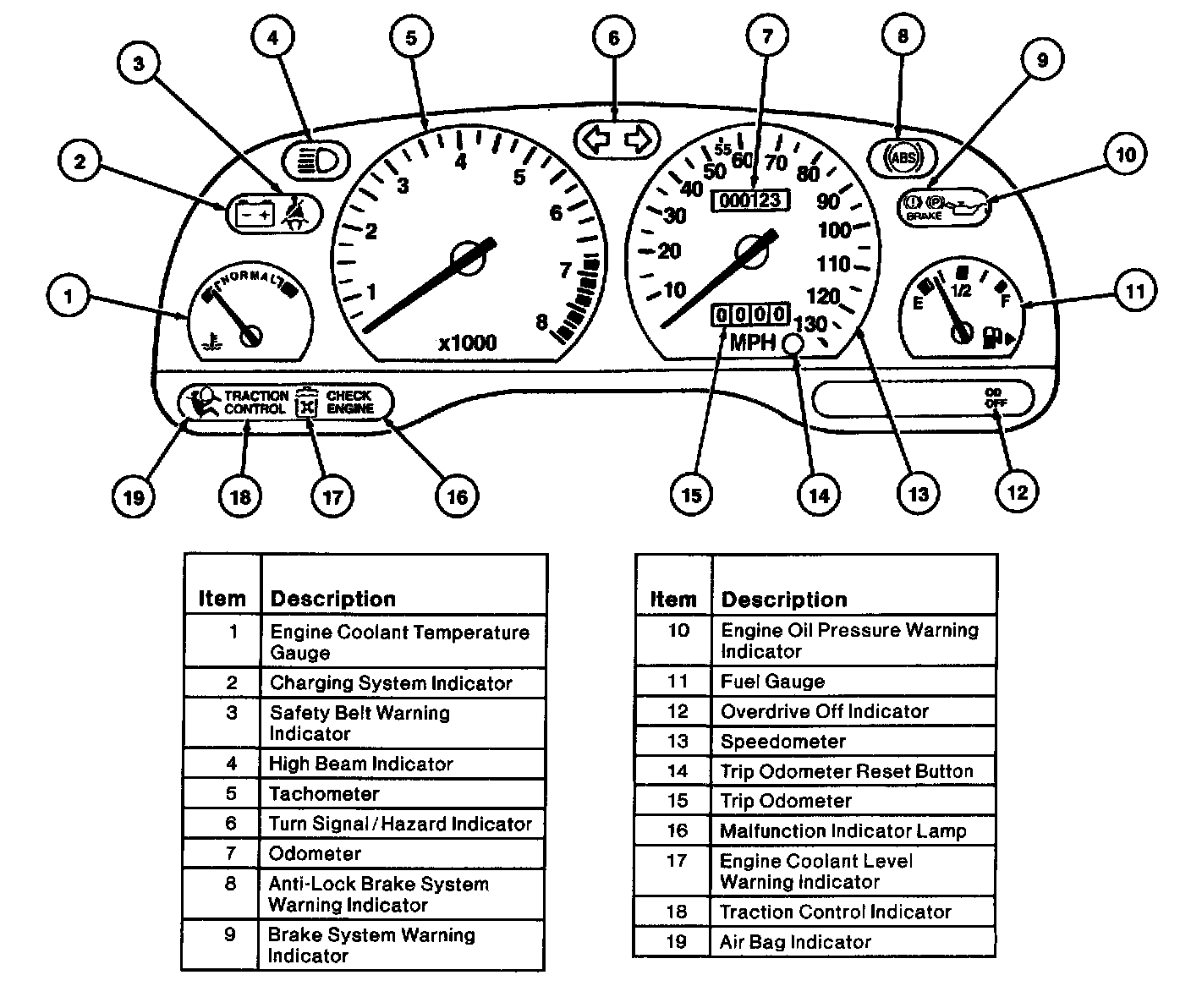

Sport Instrumentation:

The instrument cluster contains:
- Speedometer with odometer and trip odometer.
- Fuel gauge.
- Engine coolant temperature gauge.
- Tachometer.
- Warning indicators:
- Safety belt warning
- Air bag
- Malfunction Indicator Lamp (MIL)
- OD OFF (Transmission Control Indicator Lamp)
- BRAKE
- Anti-lock Brake System (ABS) warning
- High beam
- Left turn signal
- Right turn signal
- Charging system warning
- Engine coolant level
- Engine oil pressure warning
- Traction control
