Home >> Mercury >> 1997 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests Manual A/C-Heater >> A: Improper/Erratic Airflow From Outlets

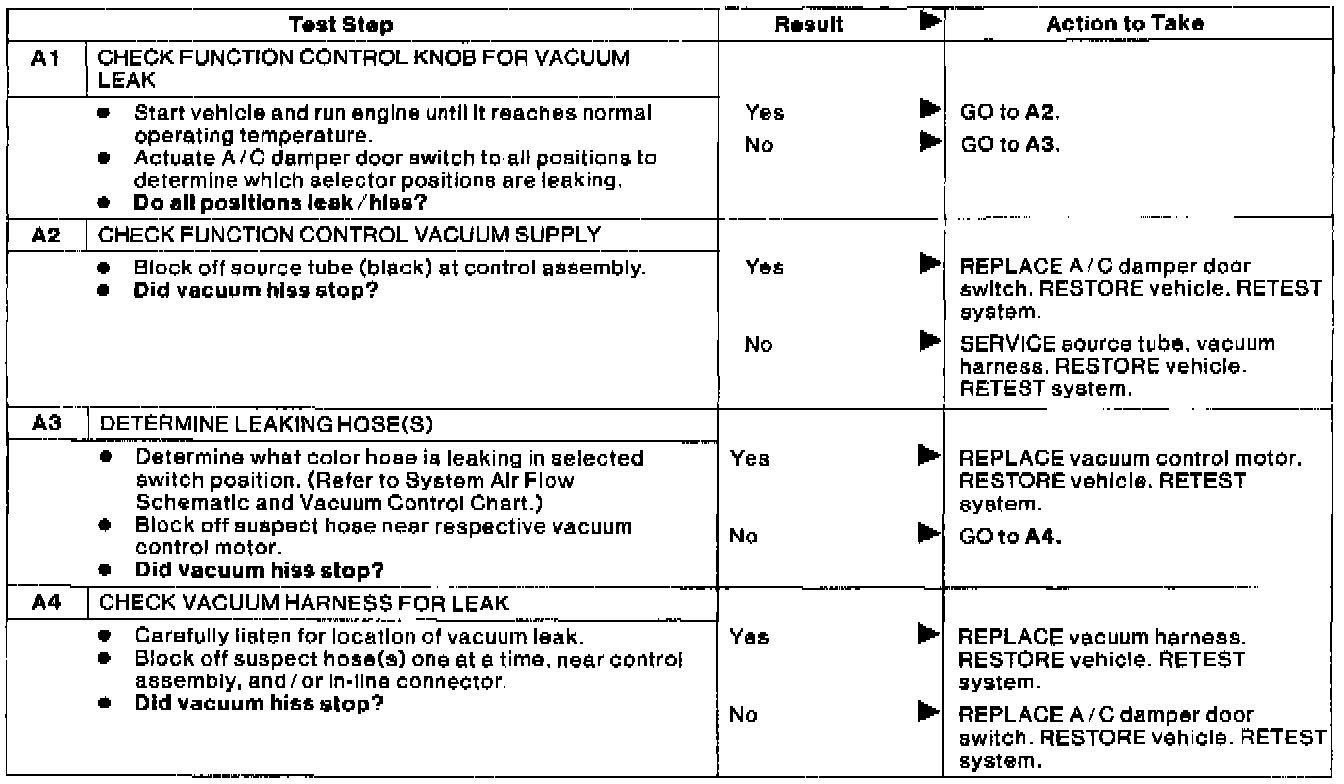

A: Improper/Erratic Airflow From Outlets

A1 - A4:
