Service Port HVAC: Locations

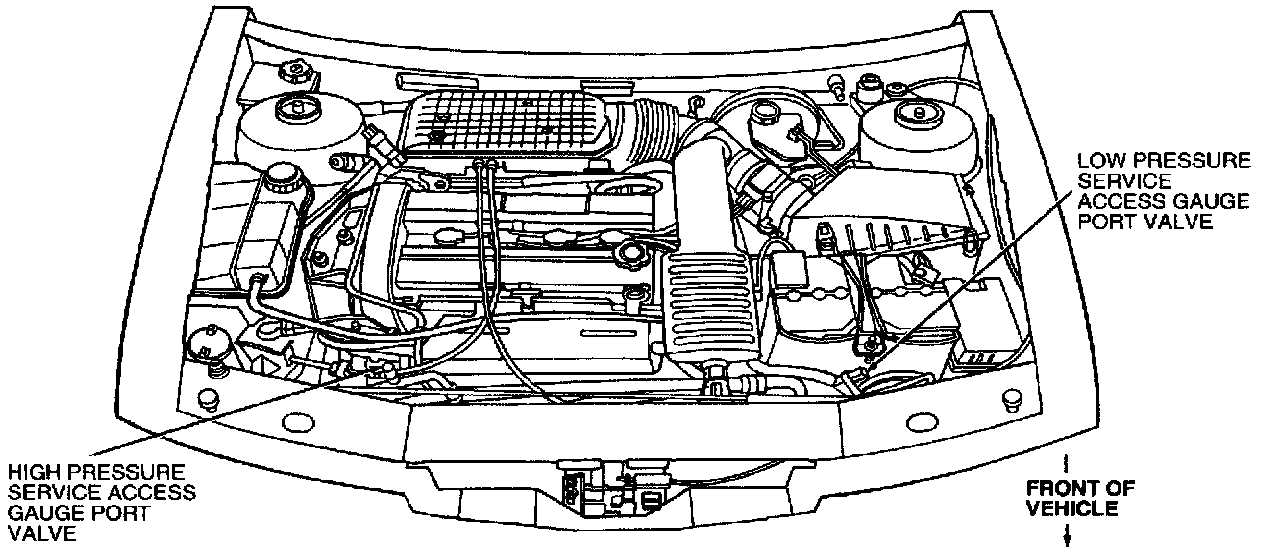

The low-pressure service access gauge port valve is located on the evaporator to compressor suction line between the A/C evaporator core and the suction accumulator/drier.

The high-pressure gauge port valve is located on the A/C manifold and tube between the A/C compressor and the A/C condenser core.
