Ventilation System

VENTILATION-FRESH AIR
This application is equipped with either a heating and defrosting or manual A/C-heater climate control system. Ventilation is the same for both systems and features:
- outside air intake from the cowl area.
- a cowl-mounted pollen filter.
- exhaust vents in the luggage compartment.
The pollen filter consists of three layers of polyester and polycarbonate non-woven fabric in a frame of the same material. It restricts particles larger than 3 microns, completely blocking pollen and dust which range in size from 7 to 100 microns.

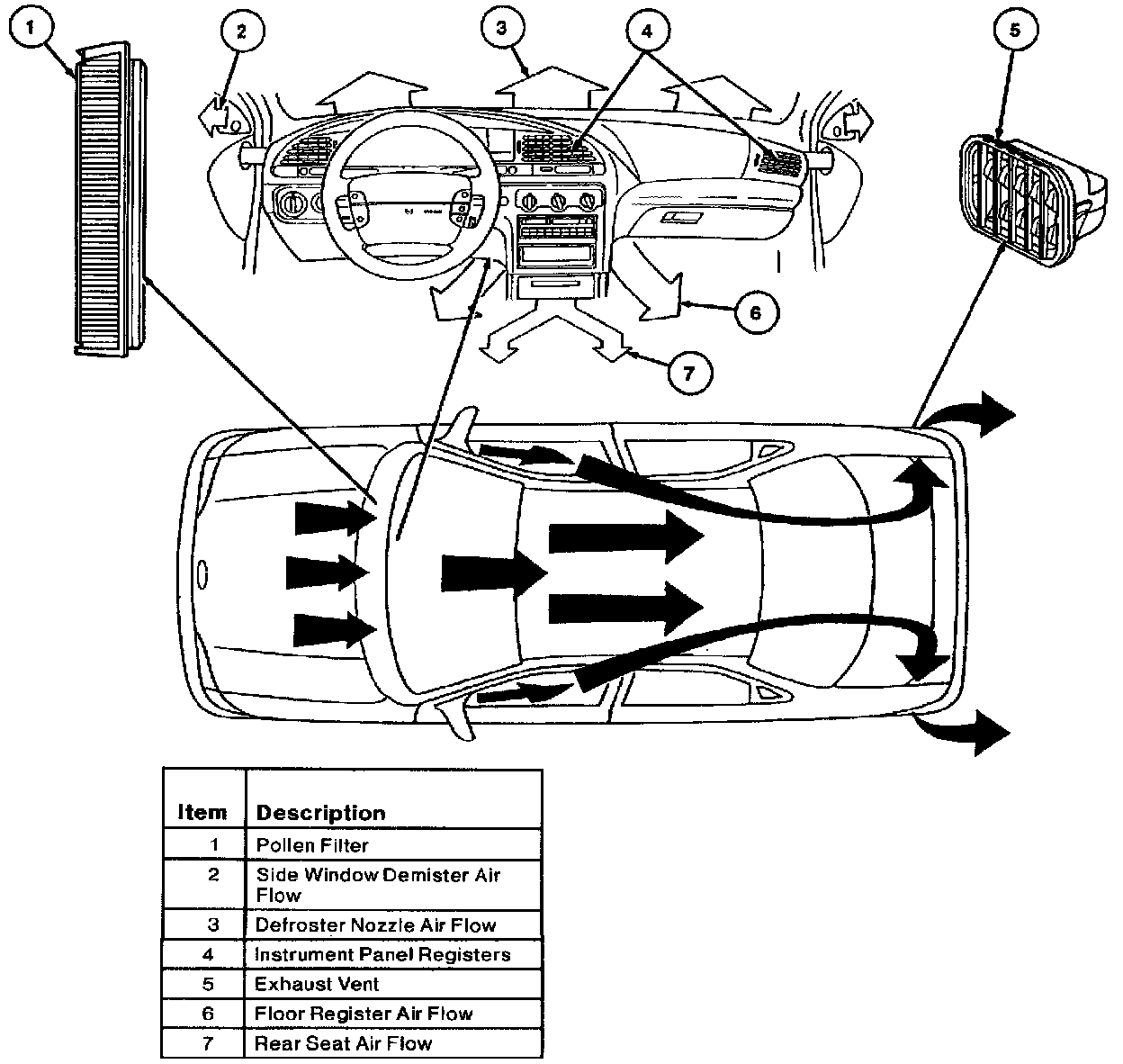

AIR DISTRIBUTION
Outside air is drawn into the vehicle through the cowl-mounted pollen filter. Air distribution within the vehicle is controlled by the driver and enters the passenger compartment from:
- instrument panel registers.
- floor register.
- defroster nozzle.
- rear seat air flow duct.
- side window demisters.

Passenger compartment air is exhausted from the vehicle through open windows or luggage compartment exhaust vents.
