Timing Belt: Testing and Inspection

NOTE: Ford does not provide camshaft gear timing marks, or information to perform timing belt service without the special tools shown in the timing belt service and repair procedure.







1. Inspect and replace the timing belt if it is contaminated with oil or grease.

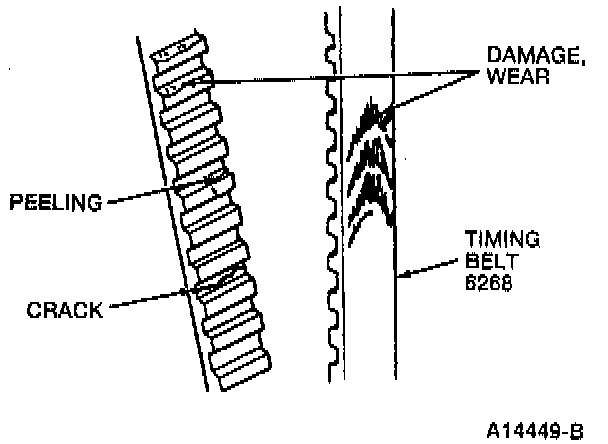

2. Inspect the timing belt for damage, wear, peeling, cracks, or hardening. If it is necessary to replace the timing belt.
