Temperature Gauge: Service and Repair

REMOVAL
1. Disconnect battery ground cable.
2. Remove instrument cluster.
3. Separate instrument cluster housing from instrument cluster back plate.
4. Remove speedometer and tachometer.

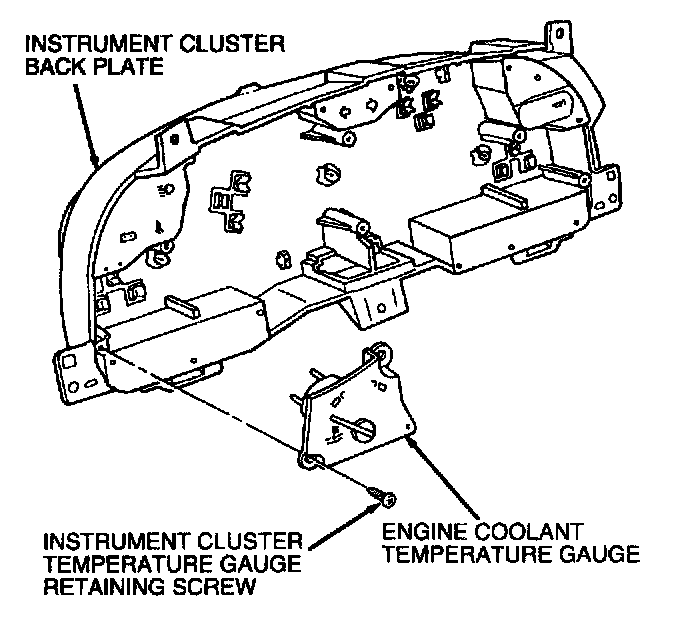

5. Remove engine coolant temperature gauge retaining screw and remove engine coolant temperature gauge carefully by pulling it away from instrument cluster back plate.

INSTALLATION
1. To install, reverse removal procedure.
