System Diagram

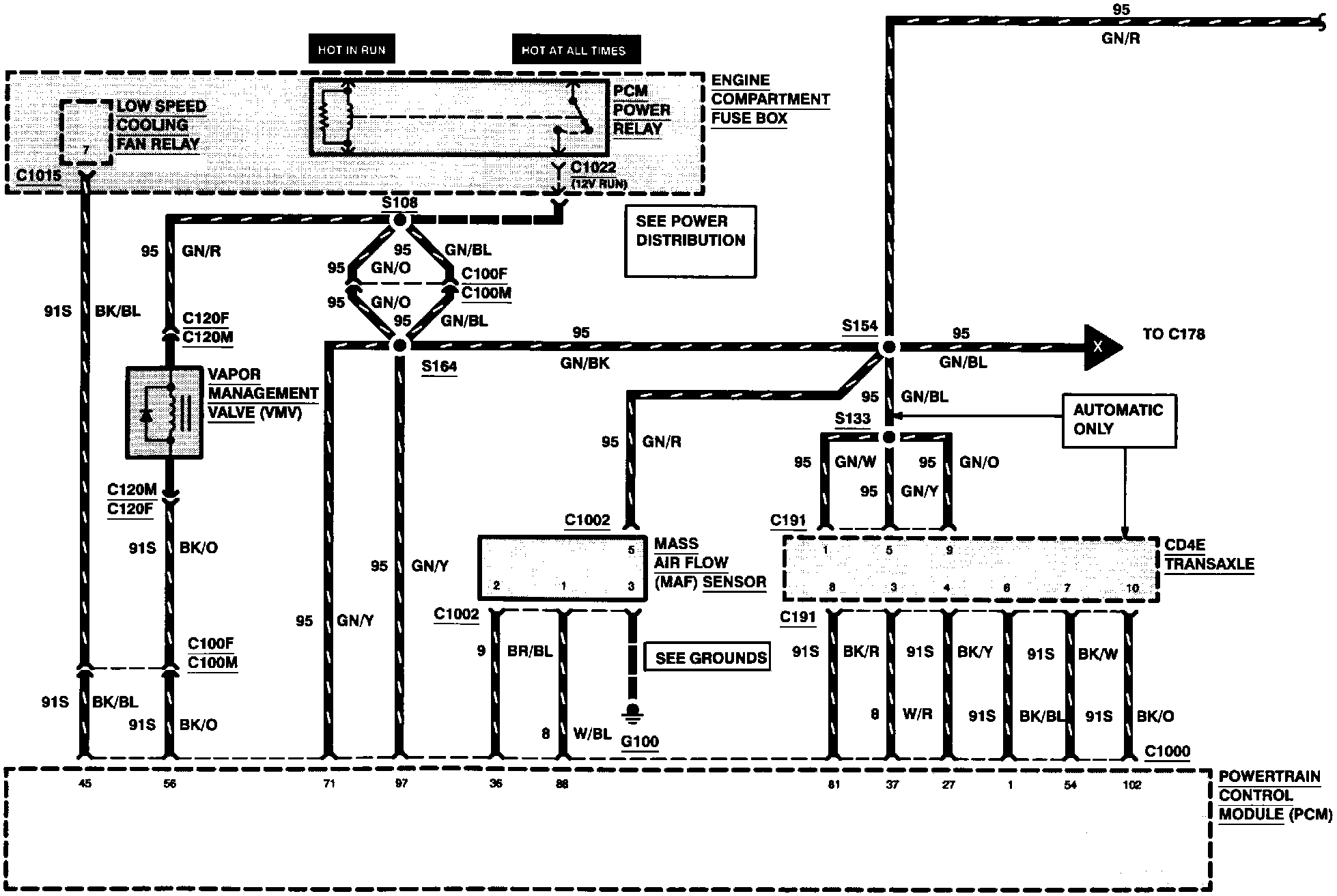

Electronic Engine Controls:

MASS AIR FLOW SENSOR
POWERTRAIN CONTROL MODULE POWER RELAY
VAPOR MANAGEMENT VALVE

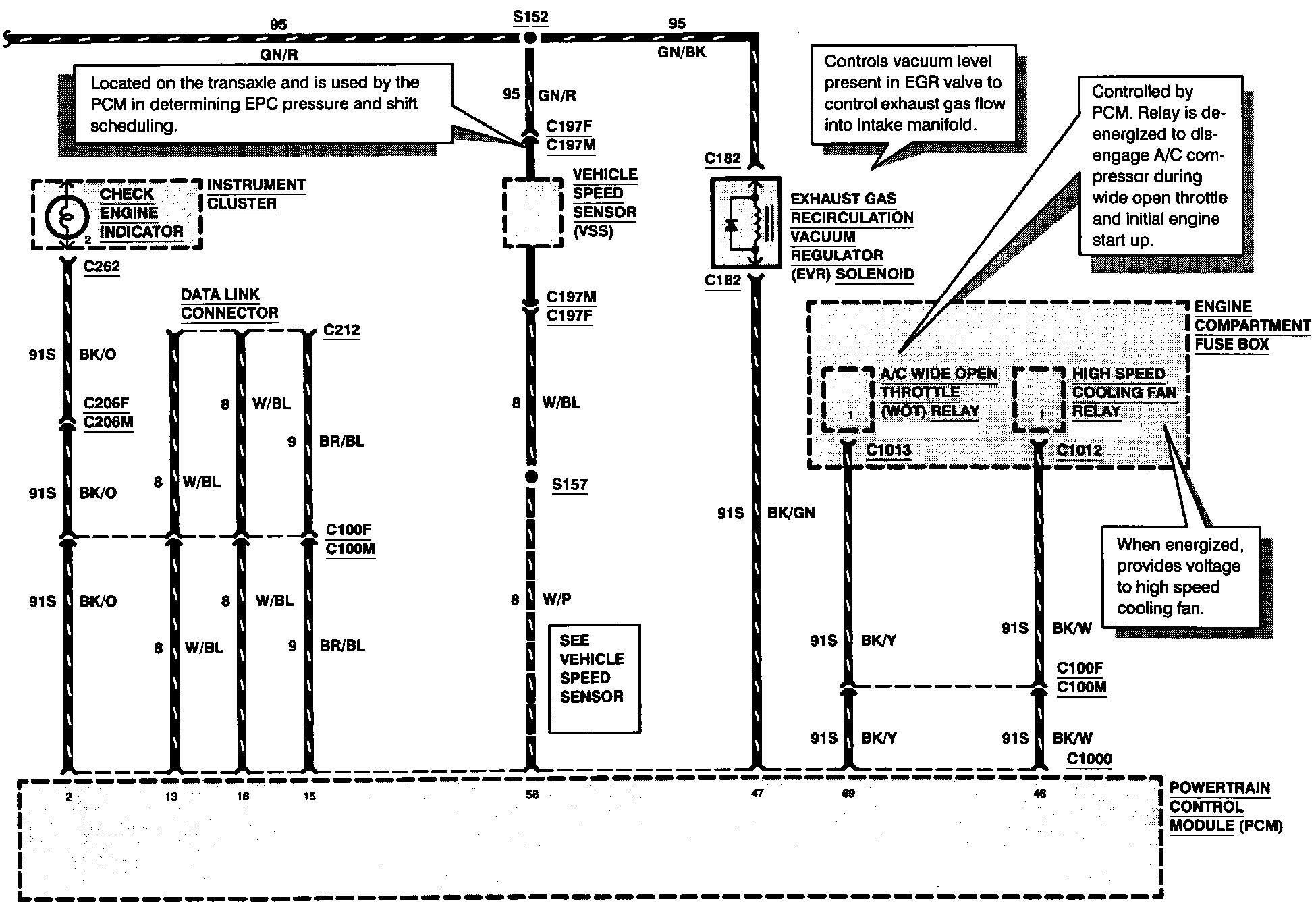

Electronic Engine Controls:

CHECK ENGINE INDICATOR
EXHAUST GAS RECIRCULATION VACUUM REGULATOR SOLENOID

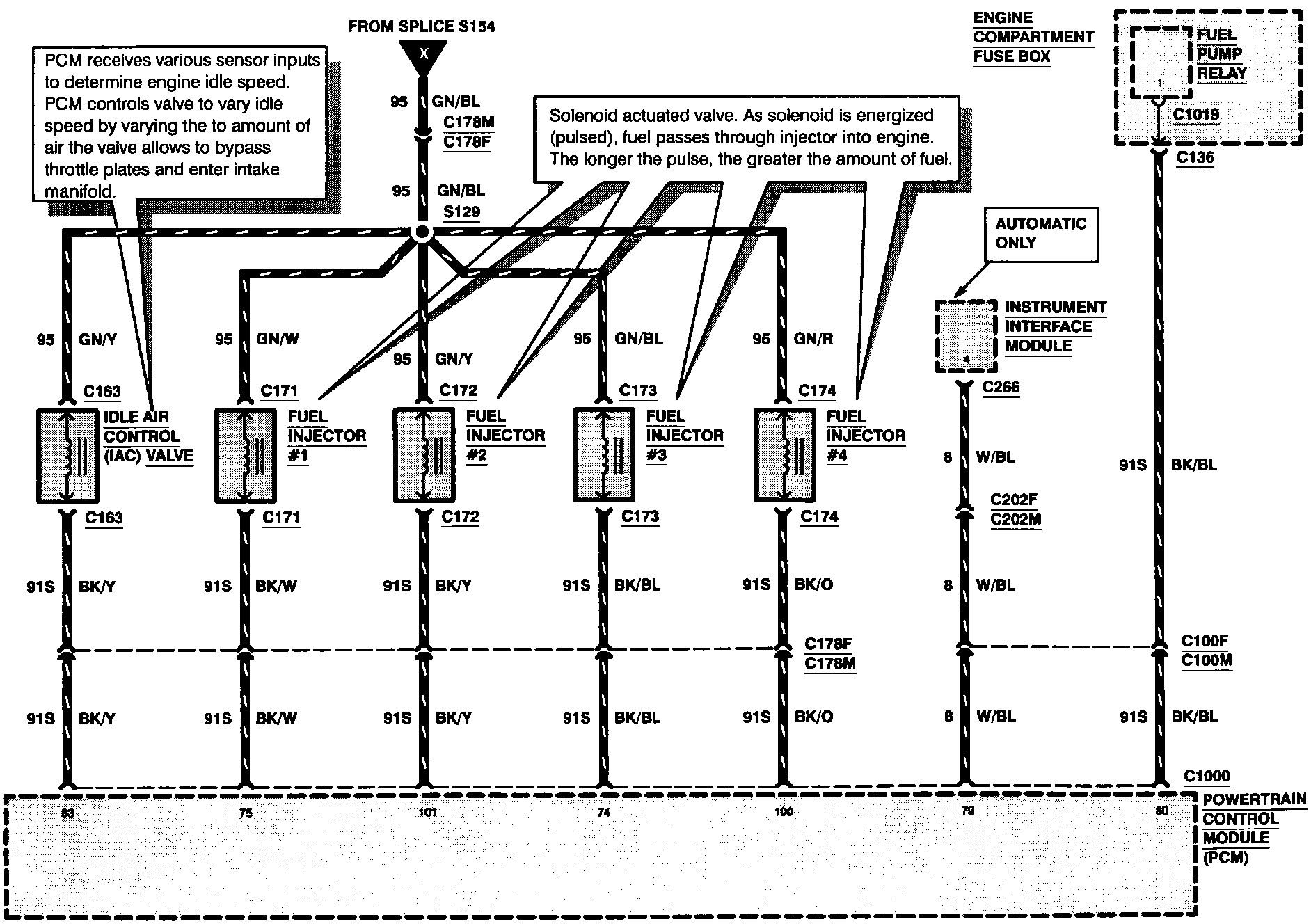

Electronic Engine Controls:

FUEL PUMP Electrical Diagrams
FUEL INJECTORS
IDLE AIR CONTROL VALVE

Electronic Engine Controls:

CAMSHAFT SPEED SENSOR
CRANKSHAFT SPEED SENSOR
TURBINE SHAFT SPEED SENSOR

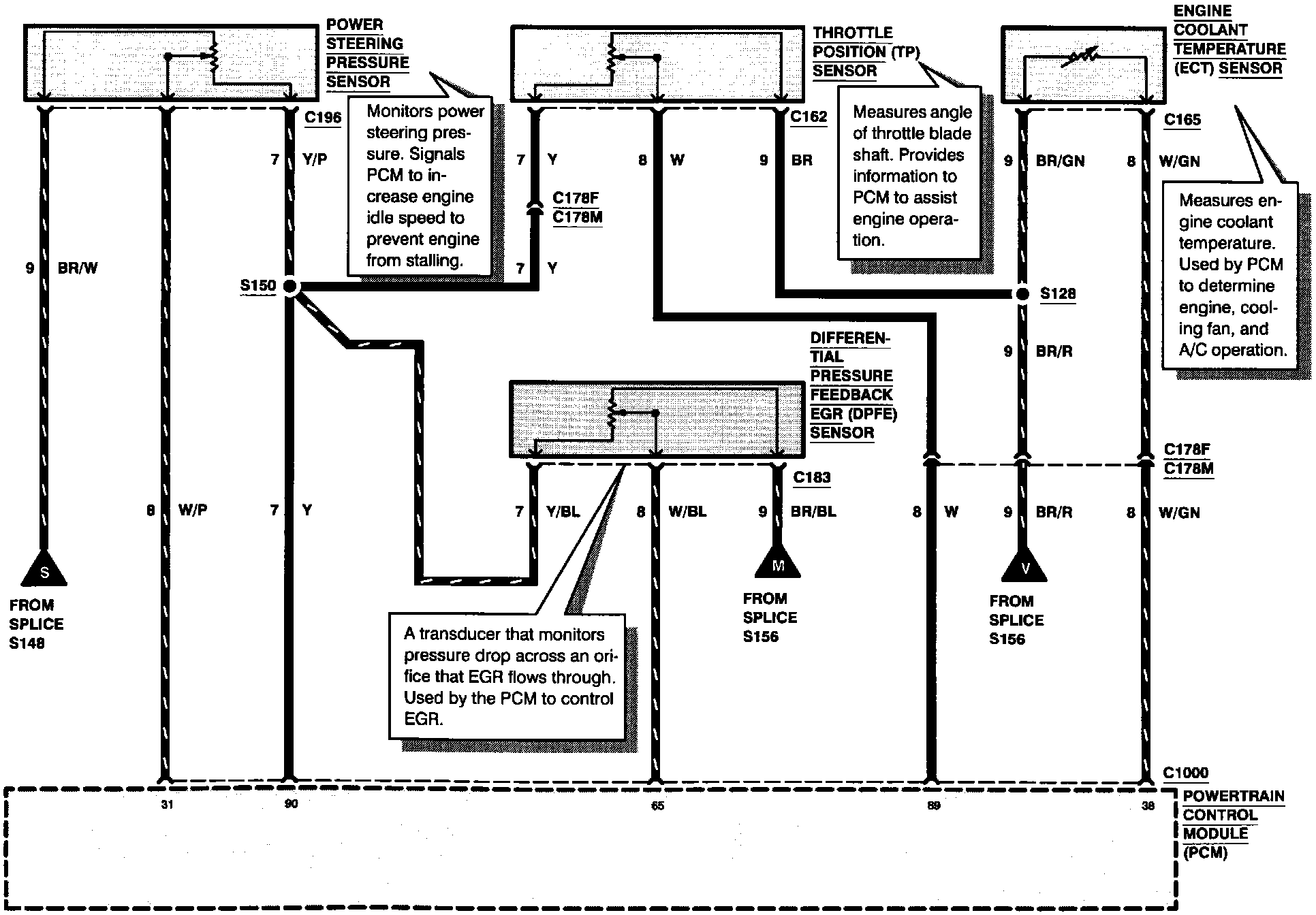

Electronic Engine Controls:

DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
POWER STEERING PRESSURE SENSOR
THROTTLE POSITION SENSOR

Electronic Engine Controls:

INTAKE AIR TEMPERATURE SENSOR
KNOCK SENSOR

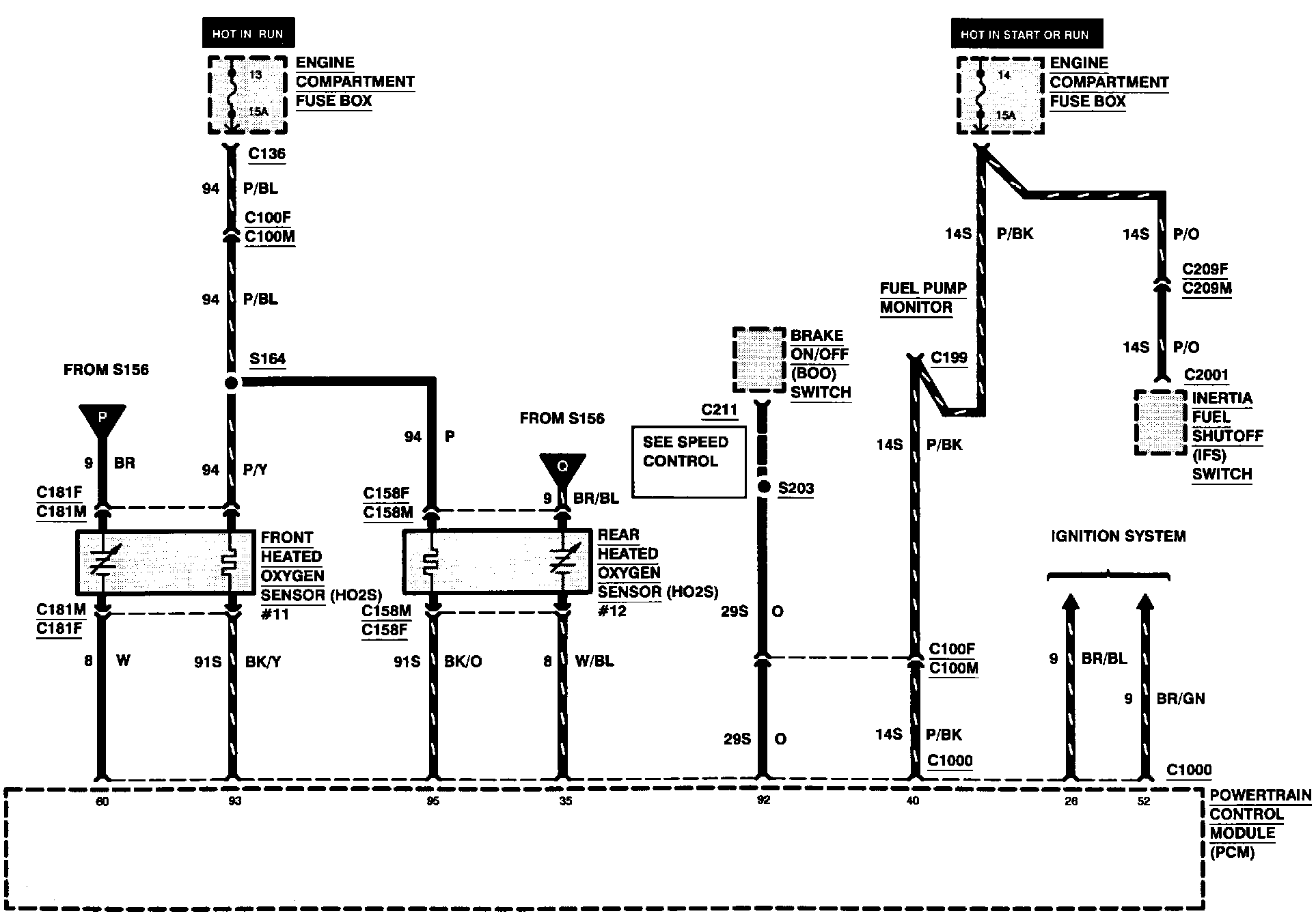

Electronic Engine Controls:

FRONT HEATED OXYGEN SENSOR #11
REAR HEATED OXYGEN SENSOR #12

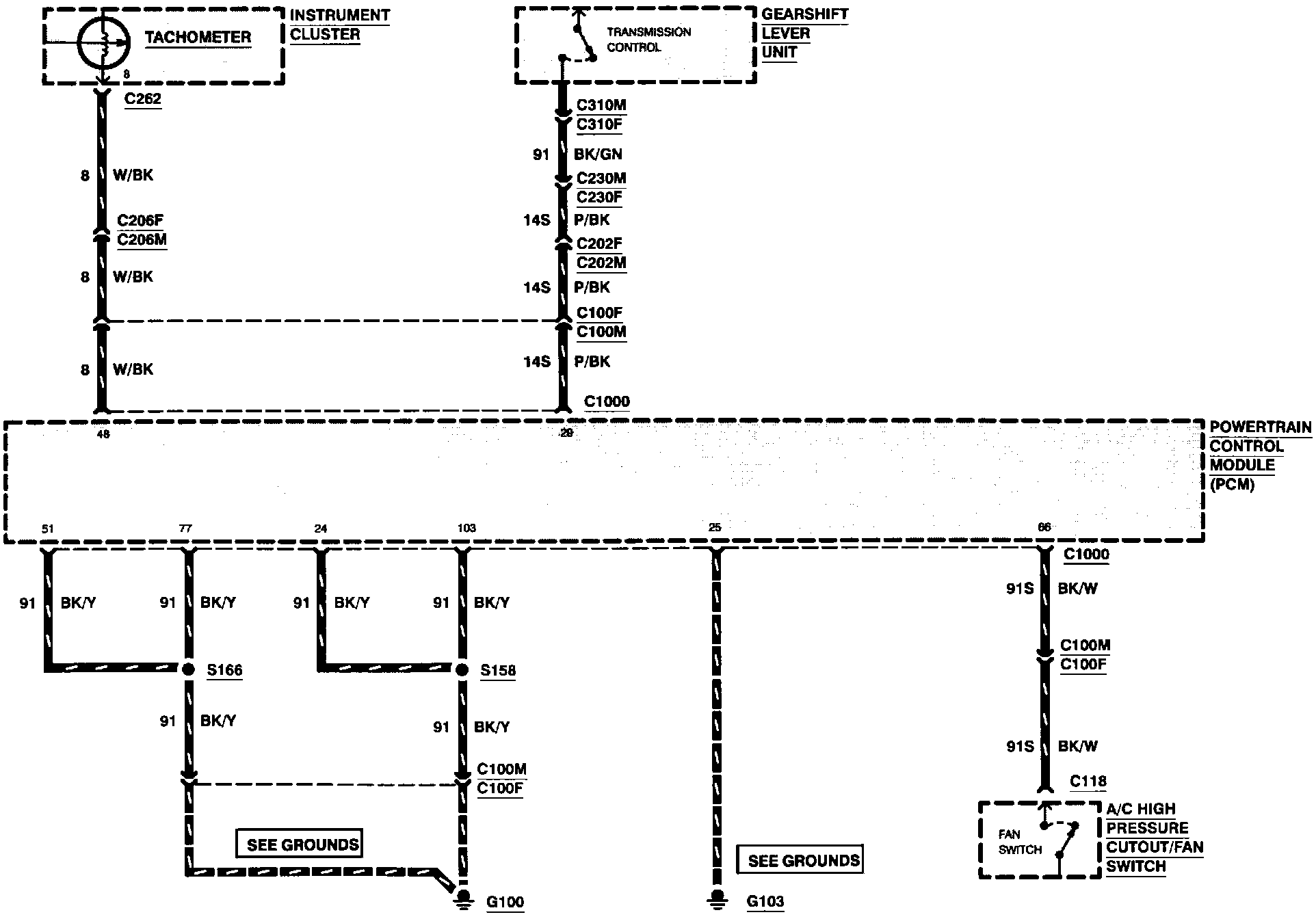

Electronic Engine Controls:

TACHOMETER
