Fuse 23

Fuse 23 - protects the following circuits:
- Park/Neutral Position Switch
- Transmission Range Sensor
- Heater-A/C Mode Switch
- Speed Control Module
- Gearshift Lever Unit
- Air Temperature Actuator

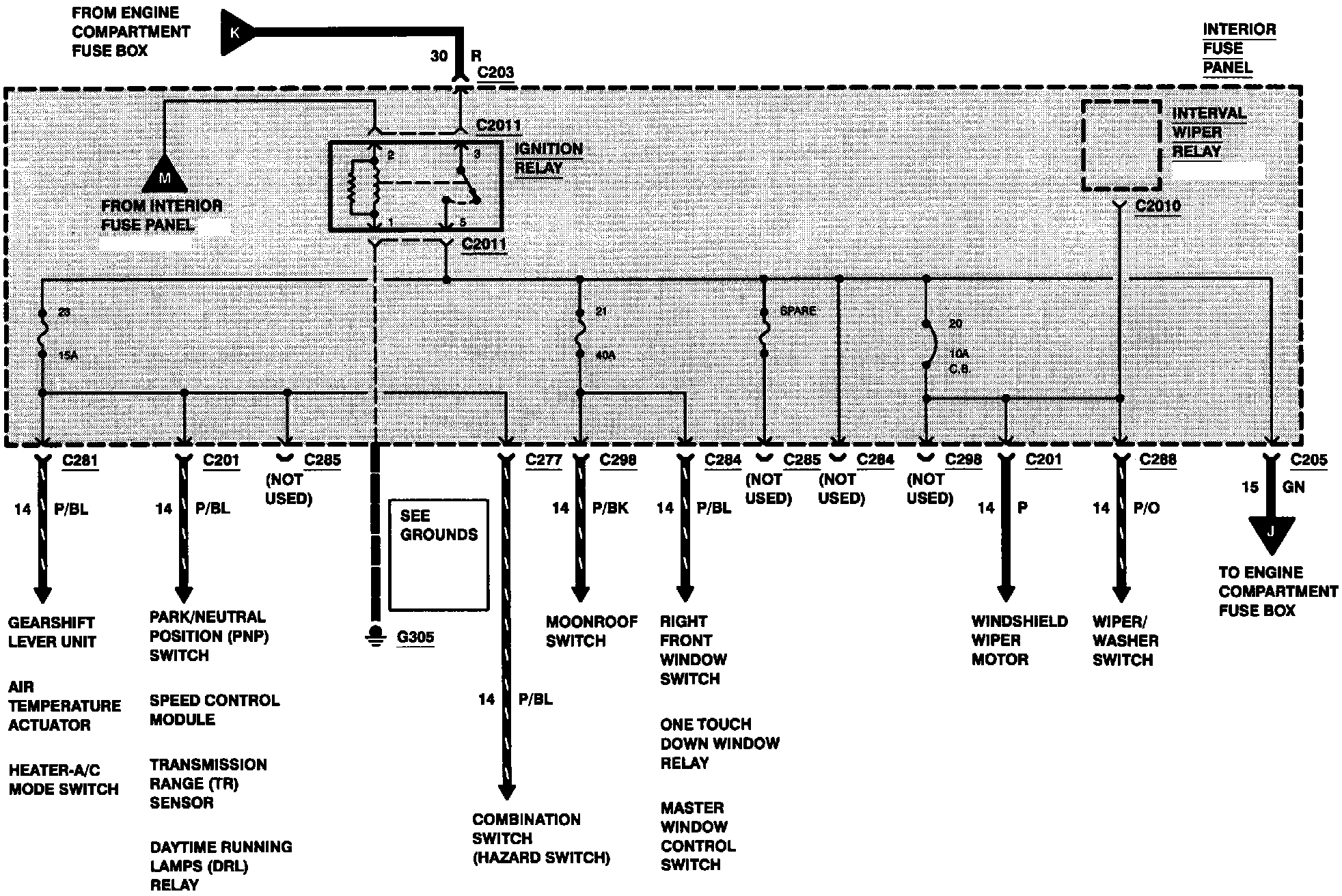

Power Distribution:
