Home >> Mercury >> 1997 >> Mystique L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Diode >> Ignition Switch Diode 1 Only >> Automatic Transmission

Automatic Transmission

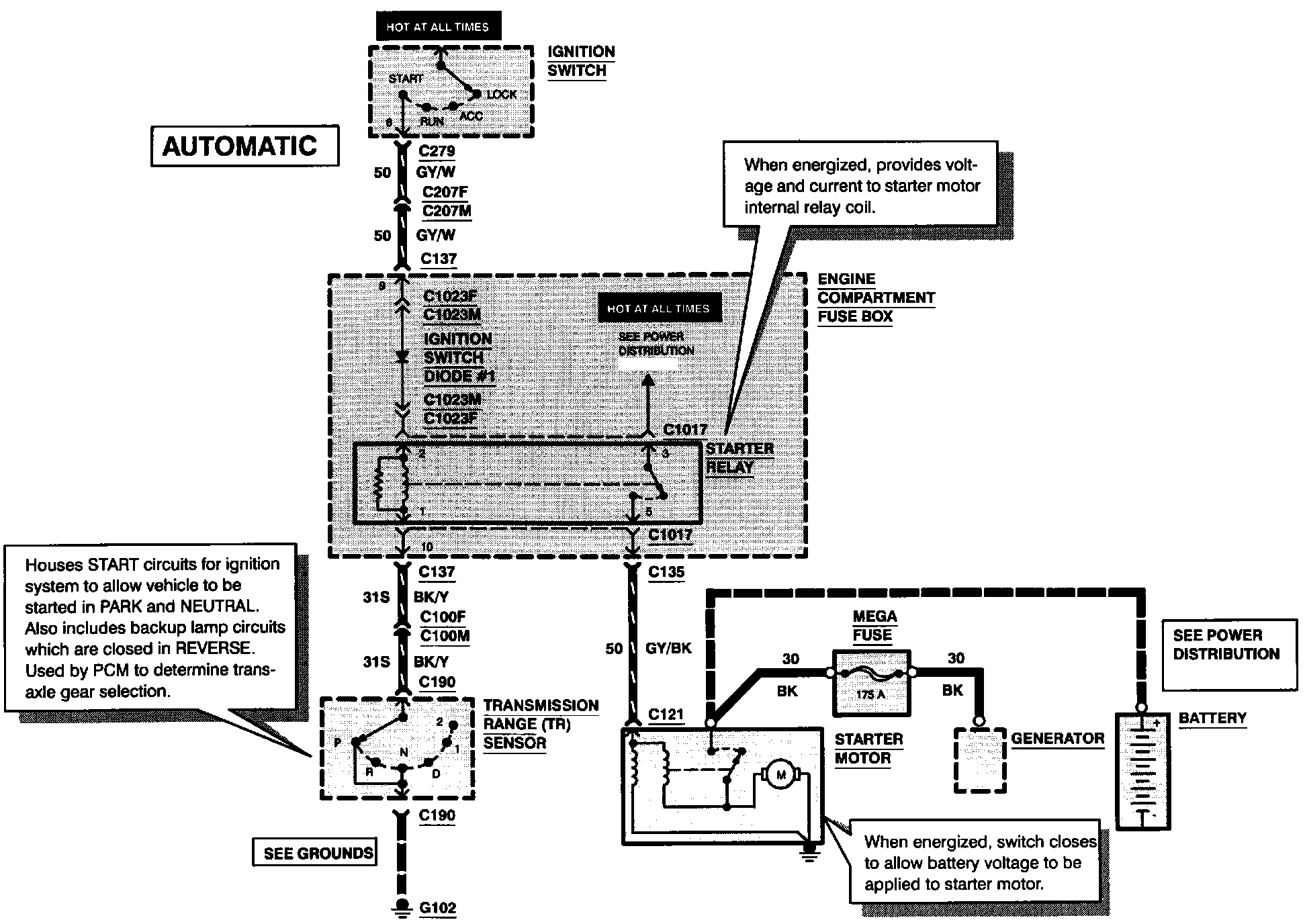

Starting System (Automatic Transmission):



Starting System (Manual Transmission):
