Without Tachometer

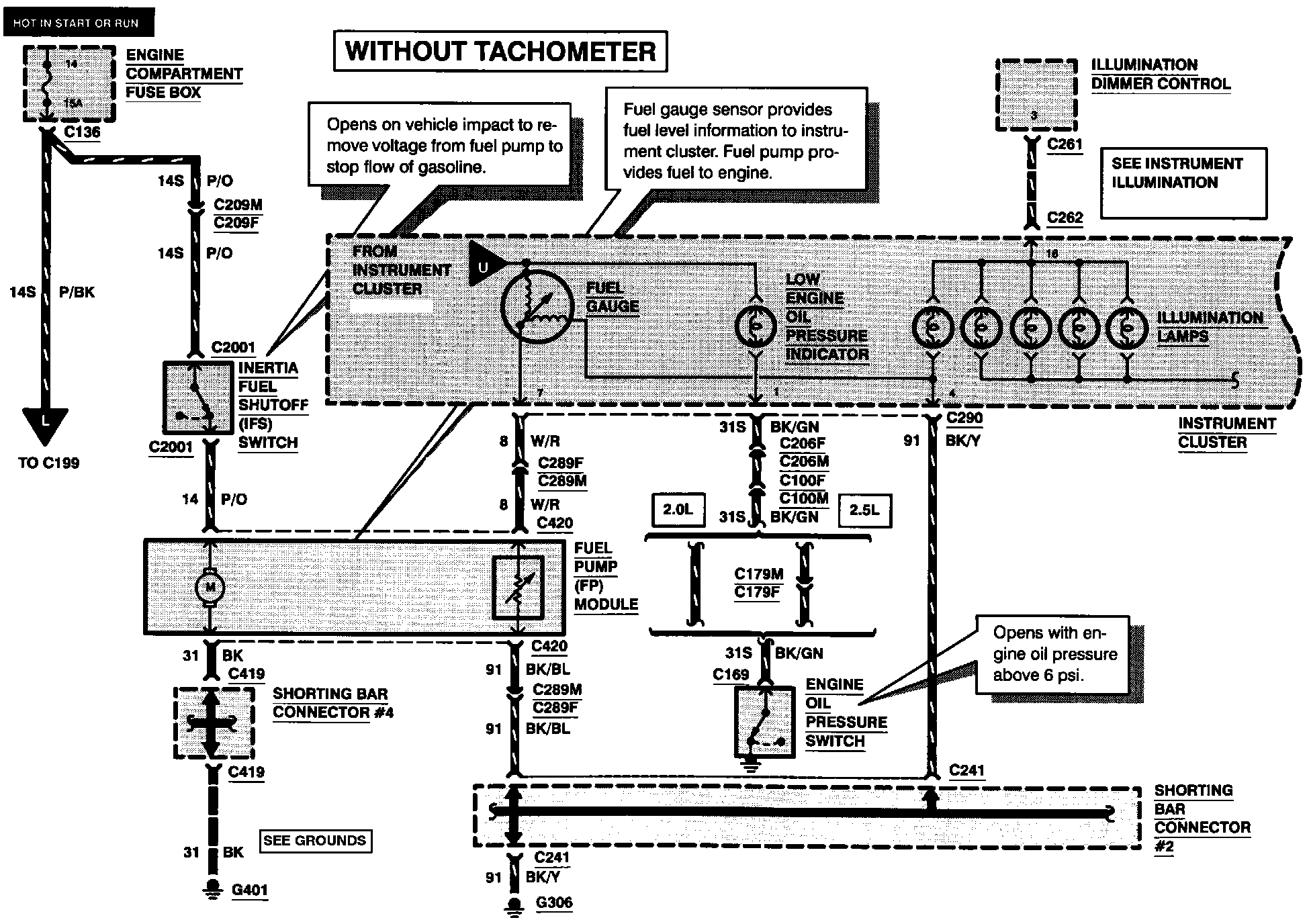

Instrument Cluster (Without Tachometer):

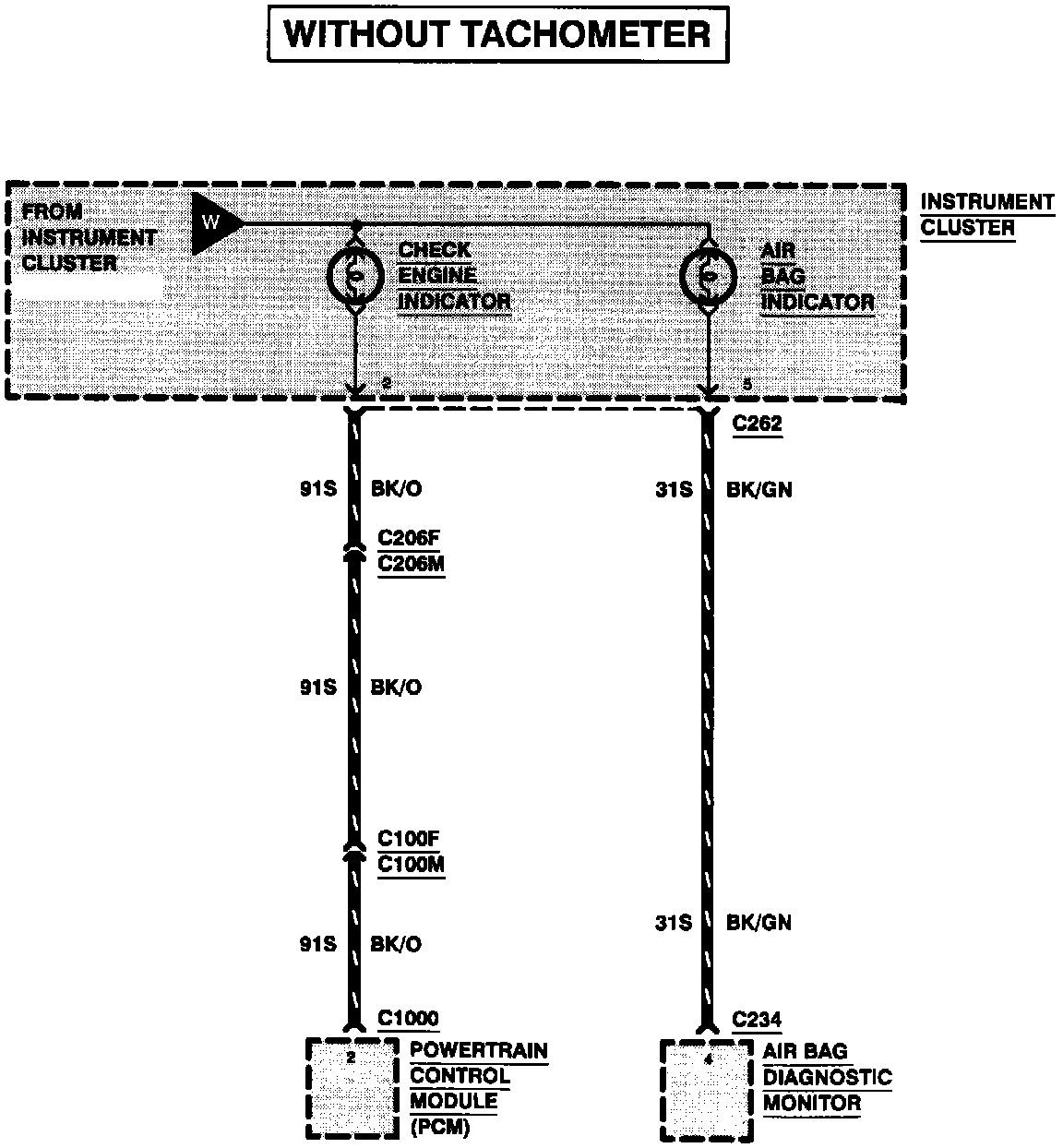

Instrument Cluster (Without Tachometer):

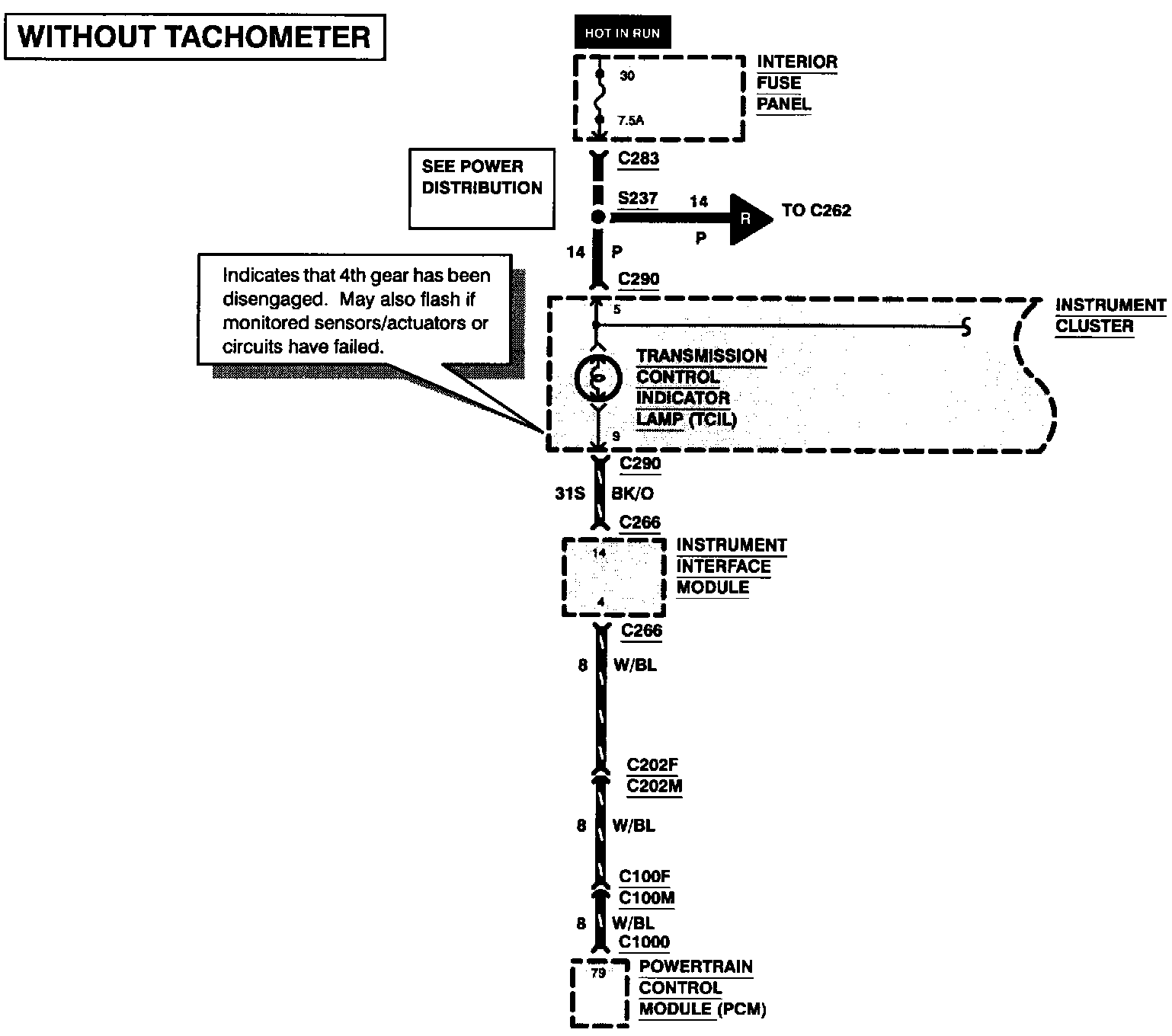

Instrument Cluster (Without Tachometer):

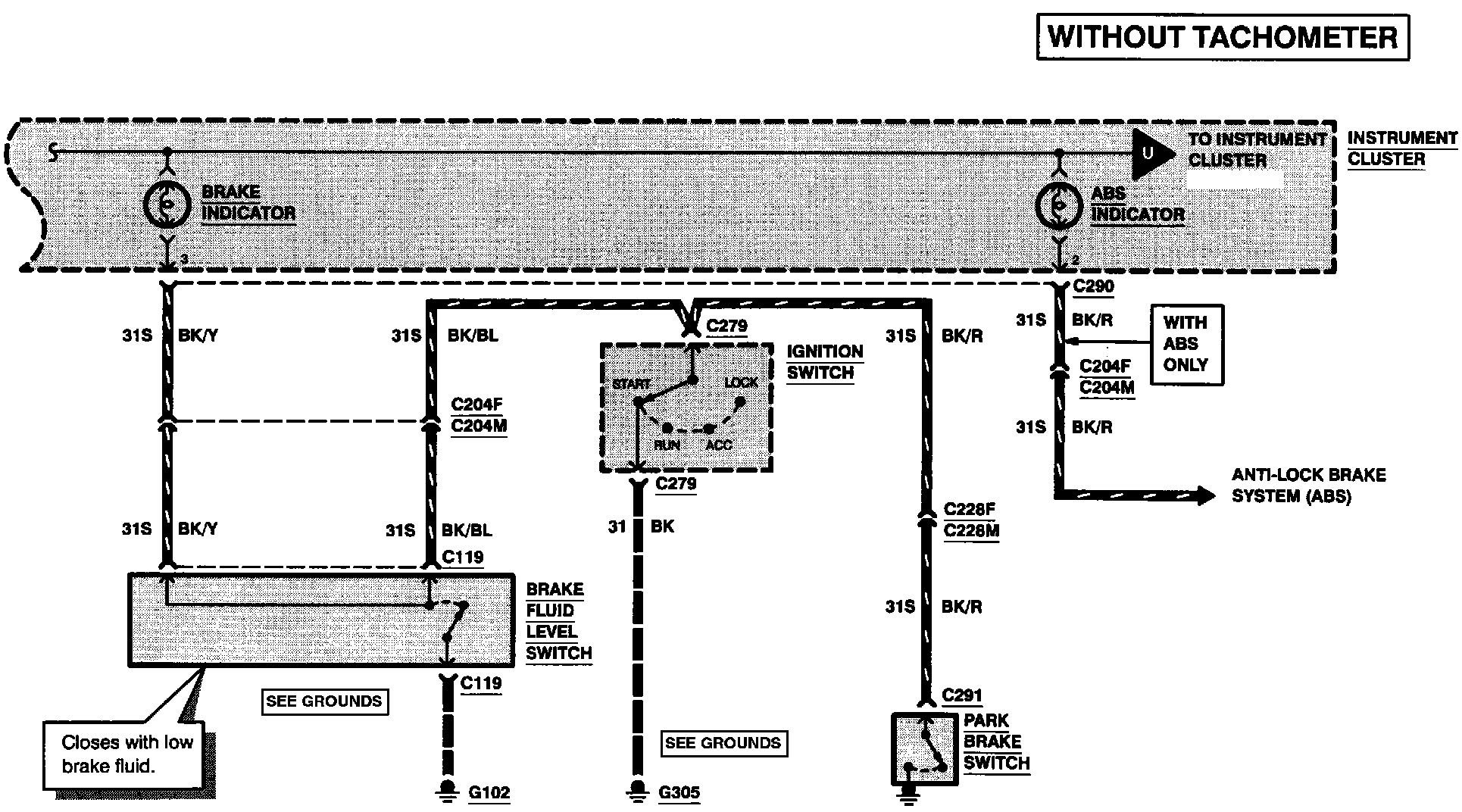

Instrument Cluster (Without Tachometer):

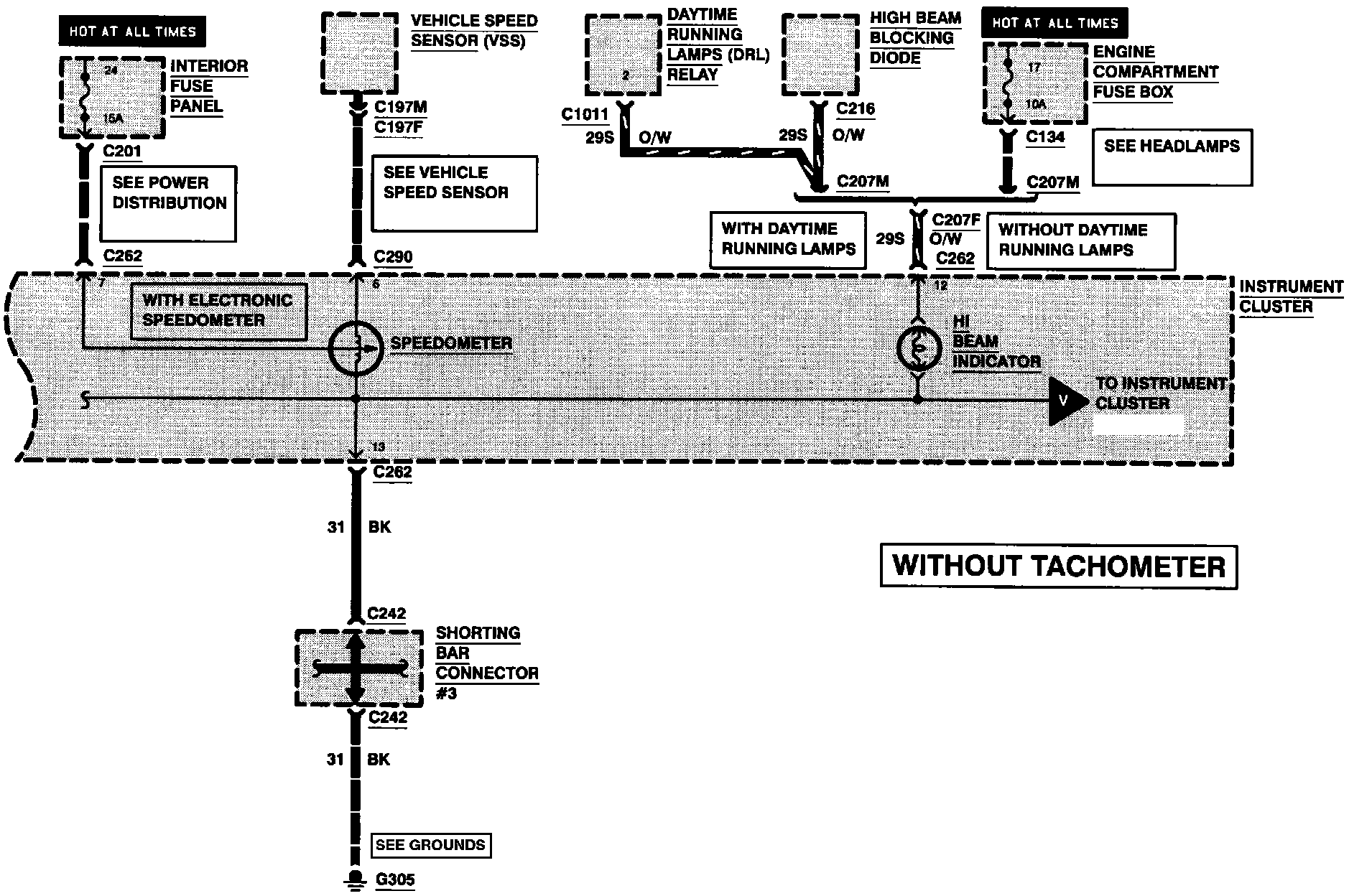

Instrument Cluster (Without Tachometer):

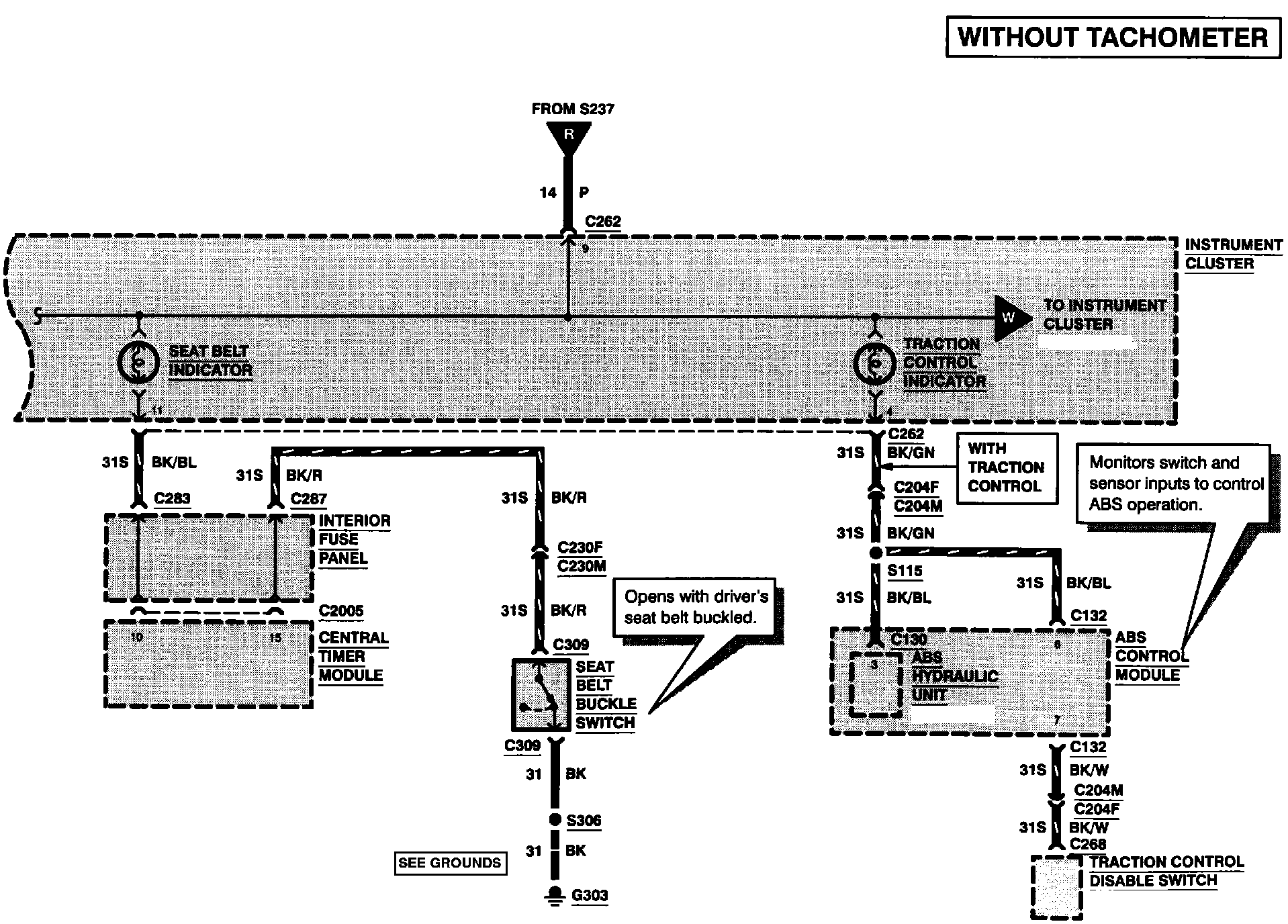

Instrument Cluster (Without Tachometer):




Instrument Cluster (Without Tachometer):




Instrument Cluster:




Instrument Cluster:
