With Tachometer

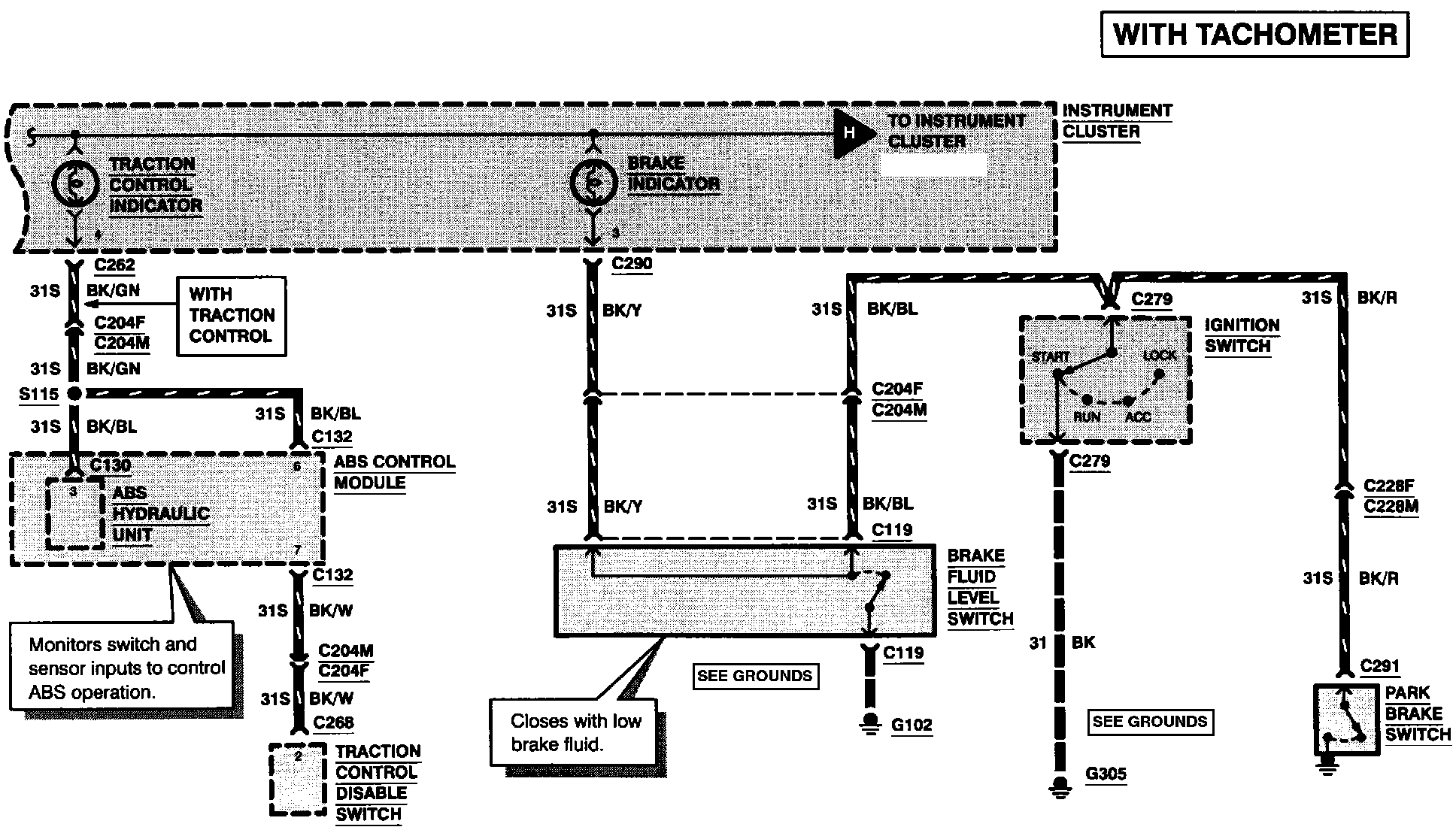

Instrument Cluster (With Tachometer):

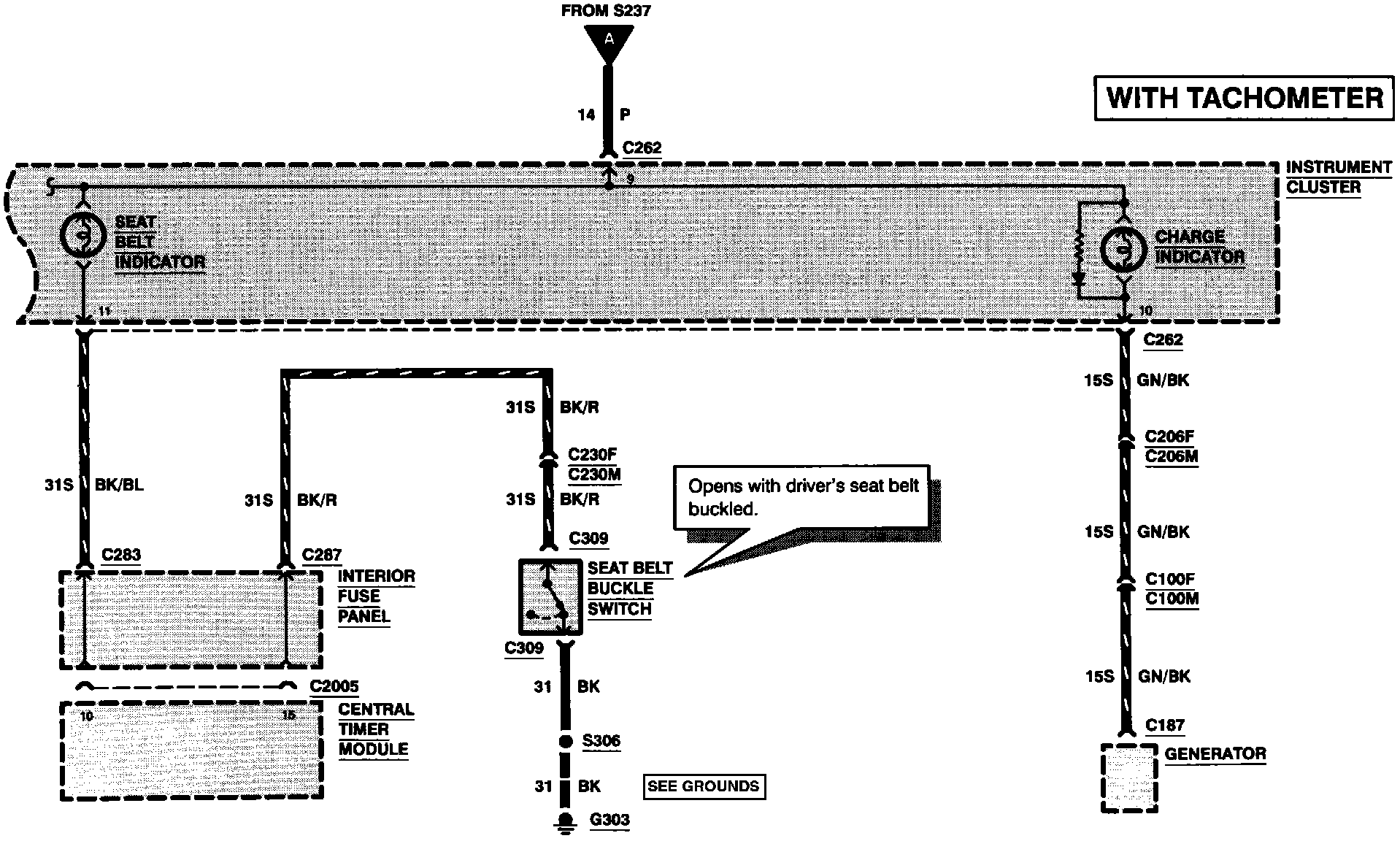

Instrument Cluster (With Tachometer):

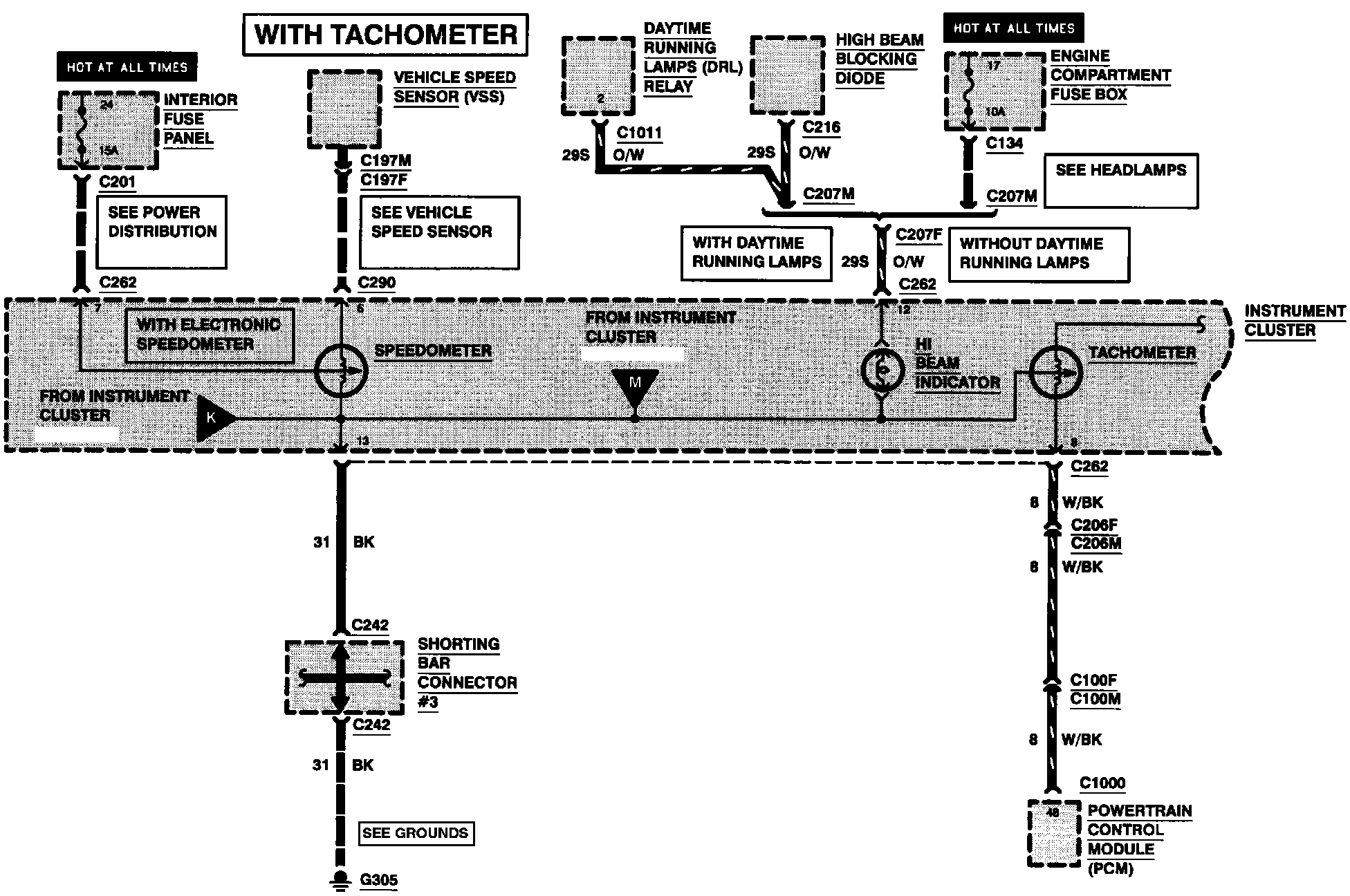

Instrument Cluster (With Tachometer):

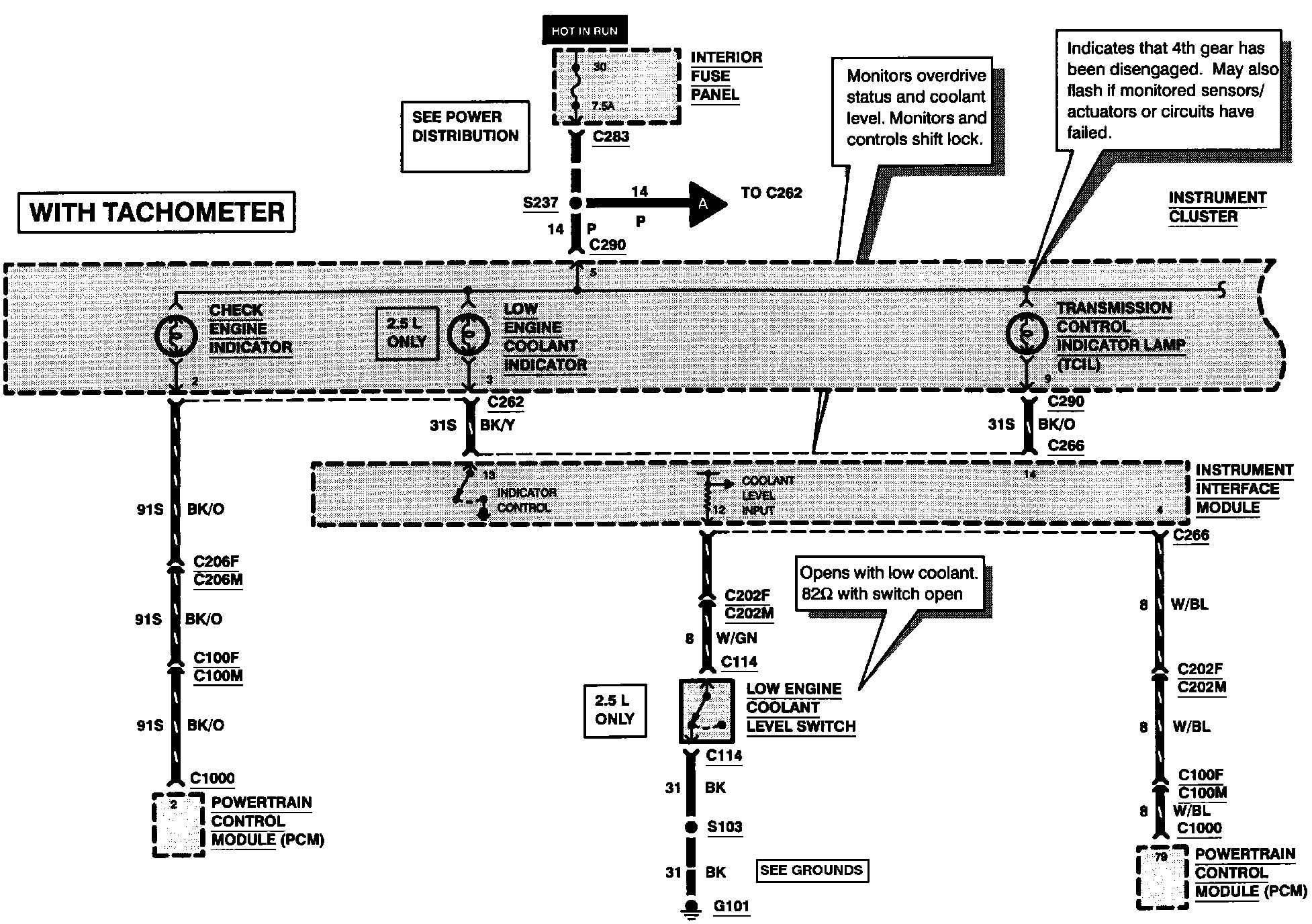

Instrument Cluster (With Tachometer):

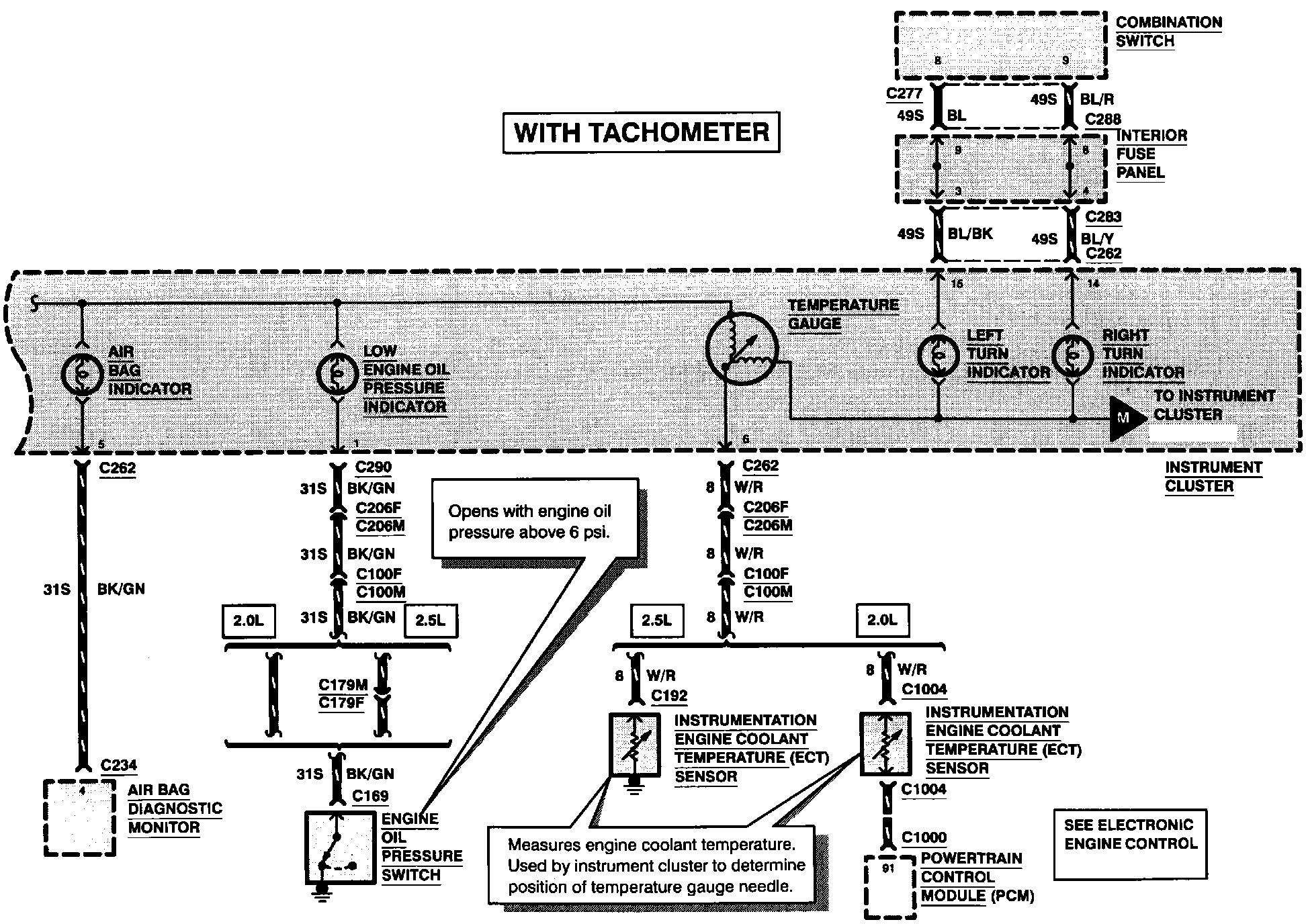

Instrument Cluster (With Tachometer):

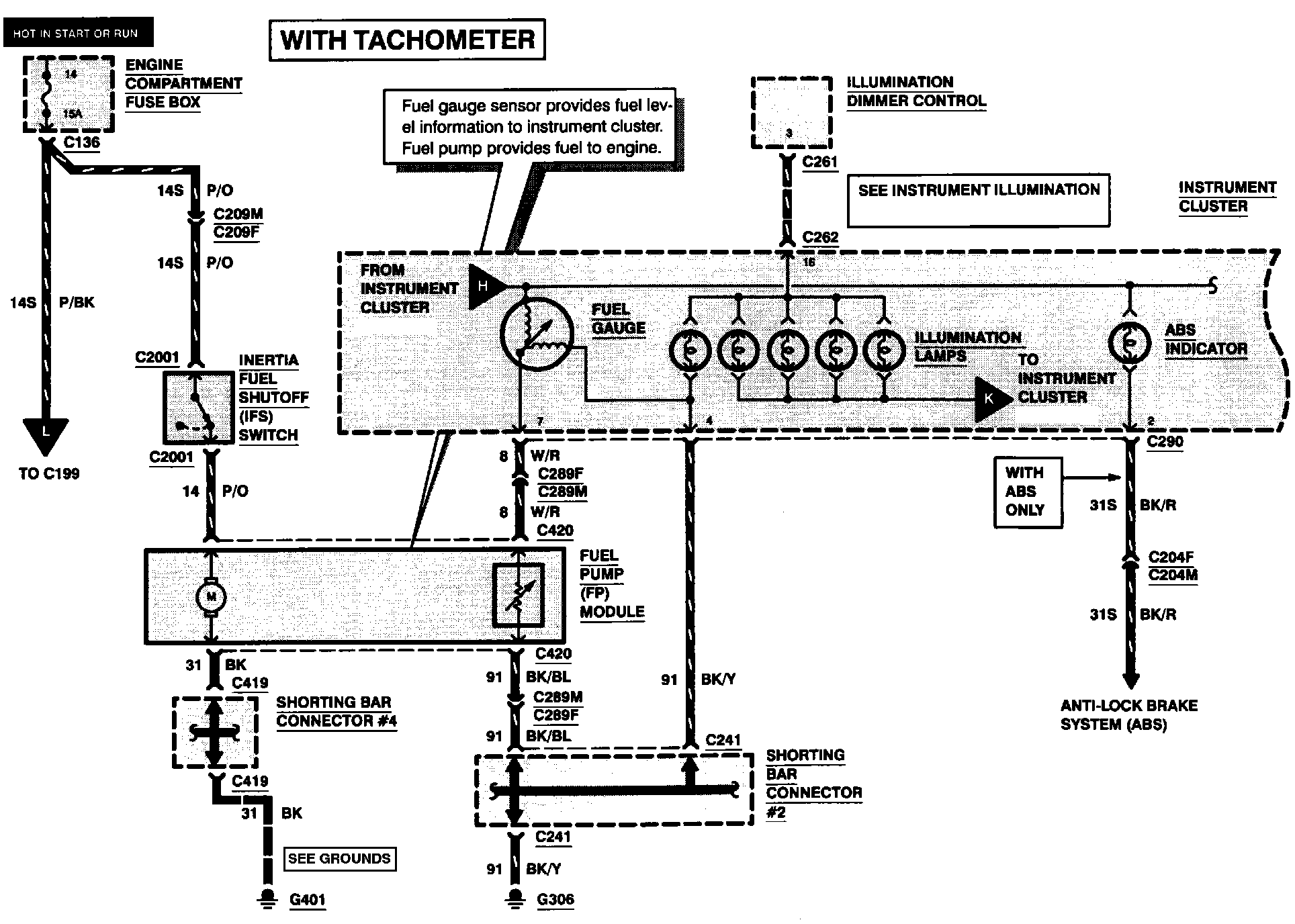

Instrument Cluster (With Tachometer):

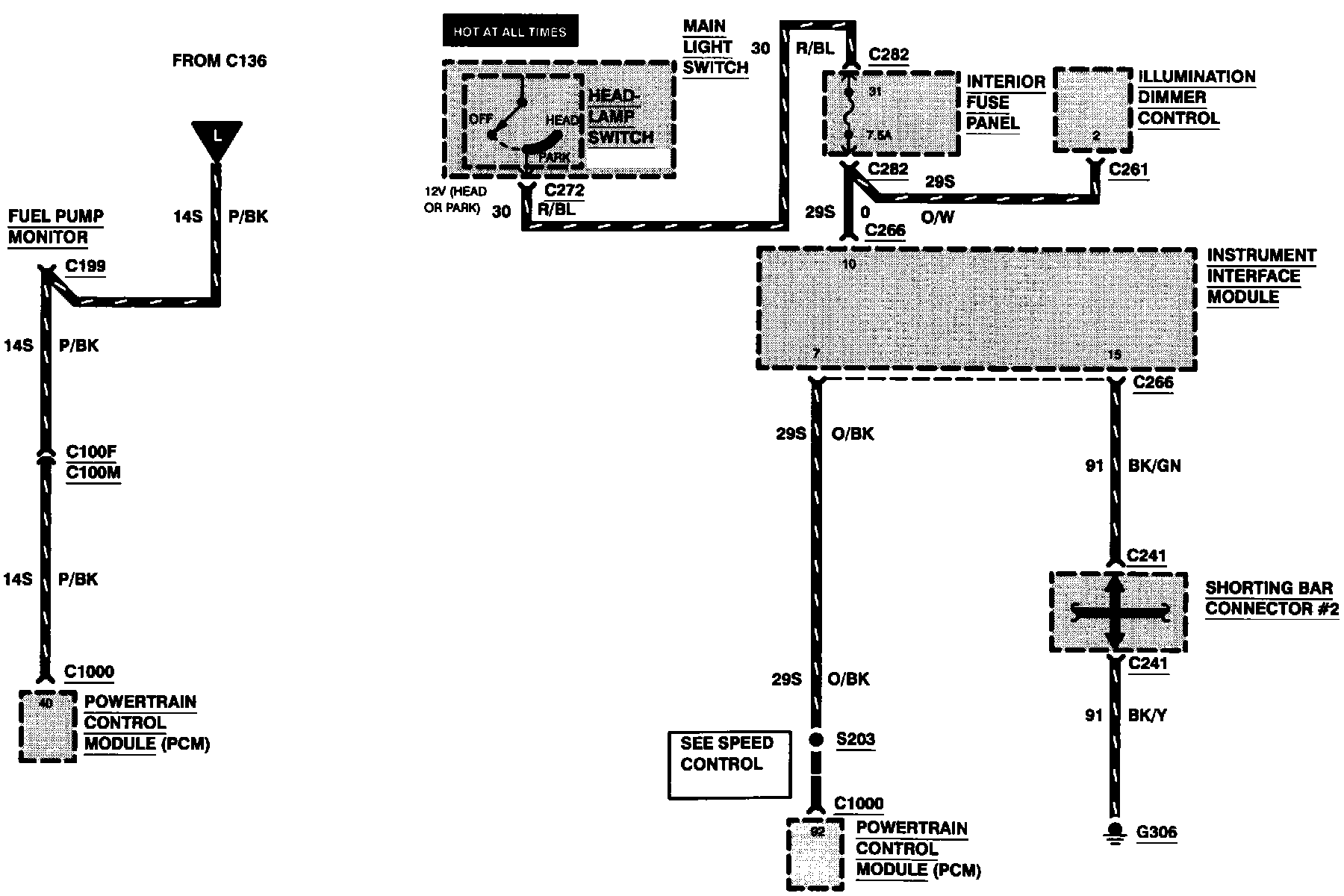

Instrument Cluster:

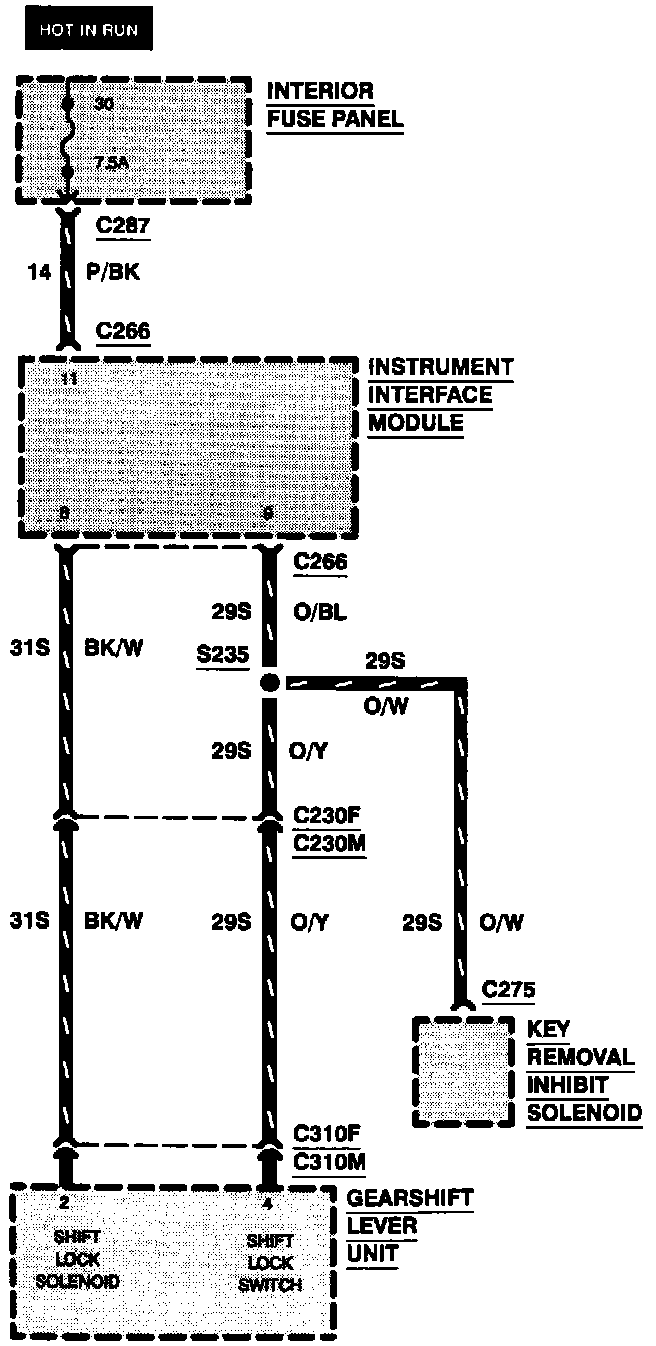

Instrument Cluster:
