Transmission Hardware Unit

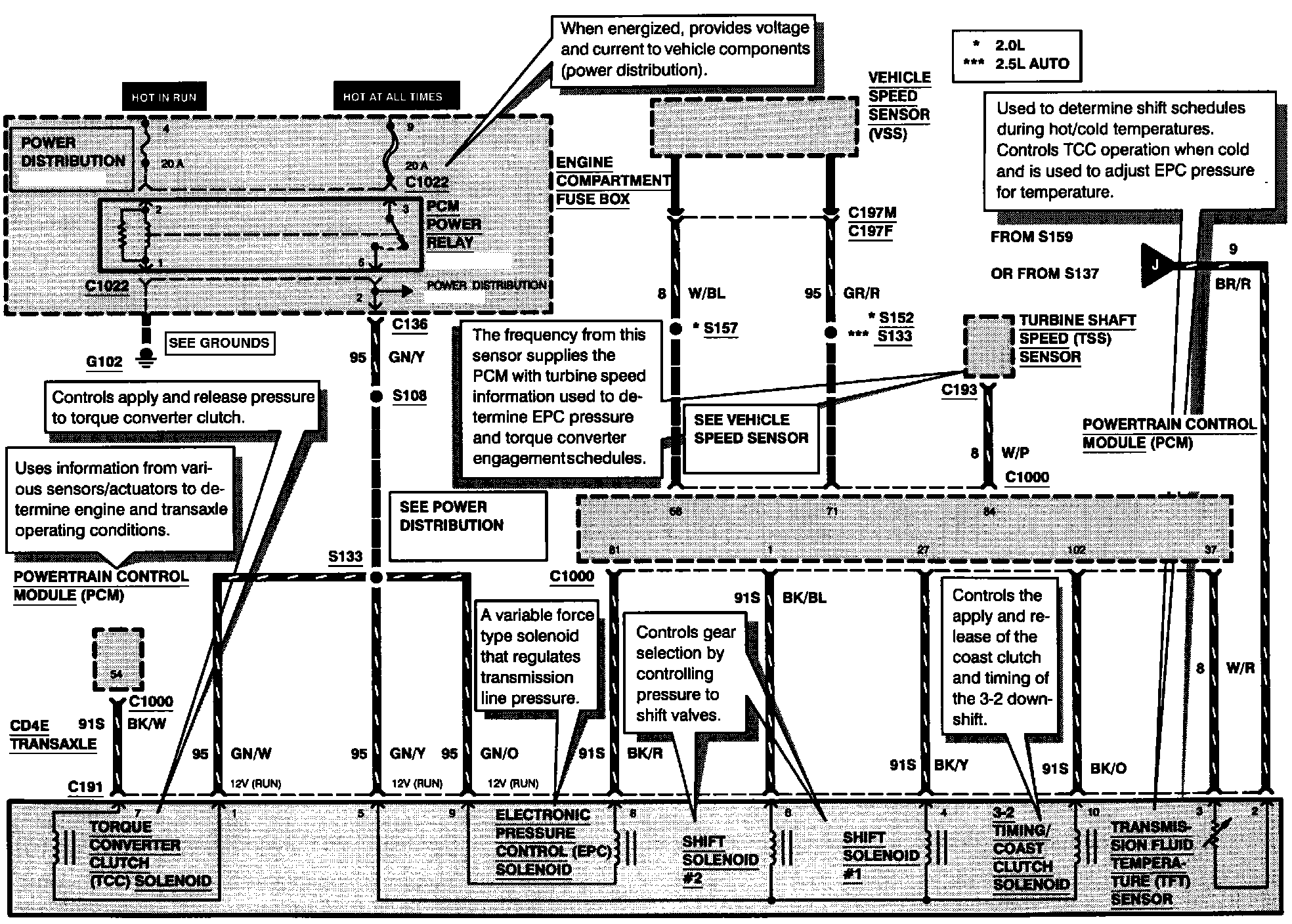

Transmission Controls (CD4E):

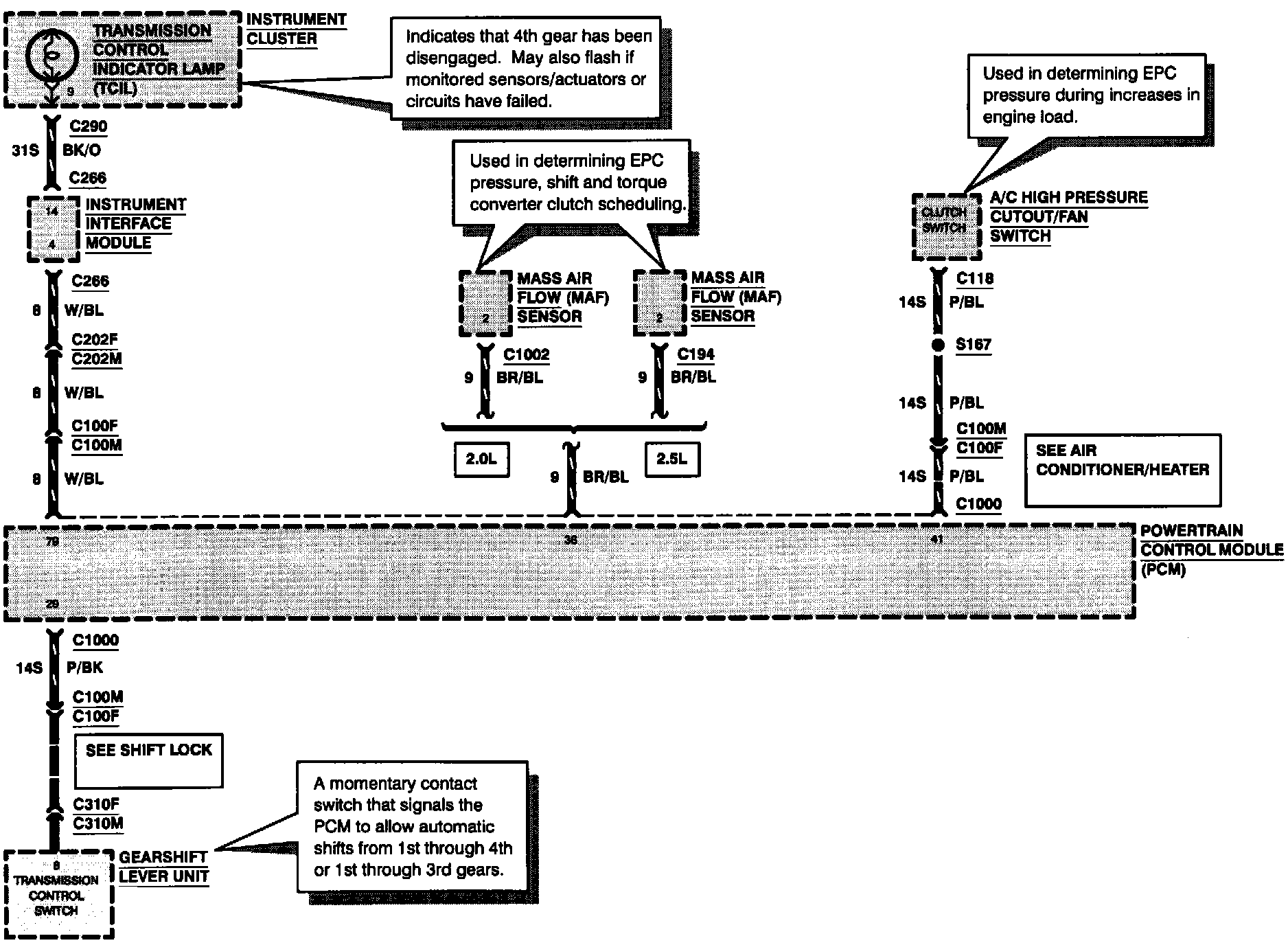

Transmission Controls (CD4E):




Transmission Controls (CD4E):
