Rear Disc

REMOVAL
1. Fully release parking brake control.
2. Raise and support vehicle.
3. Lower exhaust system and remove heat shields. Refer to Exhaust System.
4. Disengage parking brake rear cable and conduit from parking brake cable and equalizer.
5. Remove parking brake rear cable and conduit from routing brackets.

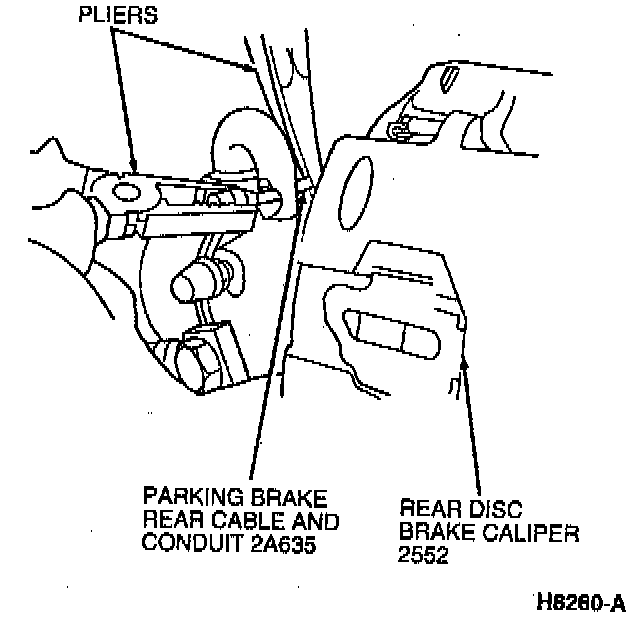

6. Remove parking brake rear cable and conduit from the rear disc brake caliper.

INSTALLATION
1. Connect parking brake rear cable and conduit to rear disc brake caliper.
2. Position parking brake rear cable and conduit in routing clips.
3. Attach parking brake rear cable and conduits to parking brake cable and equalizer.
4. Install heat shields and raise exhaust system.
5. Lower vehicle.
6. Adjust cable tension by operating parking brake control several times.
