Front

REMOVAL
1. Fully release parking brake.
2. Raise and support vehicle.
3. Lower exhaust system and remove heat shields. Refer to Exhaust System.

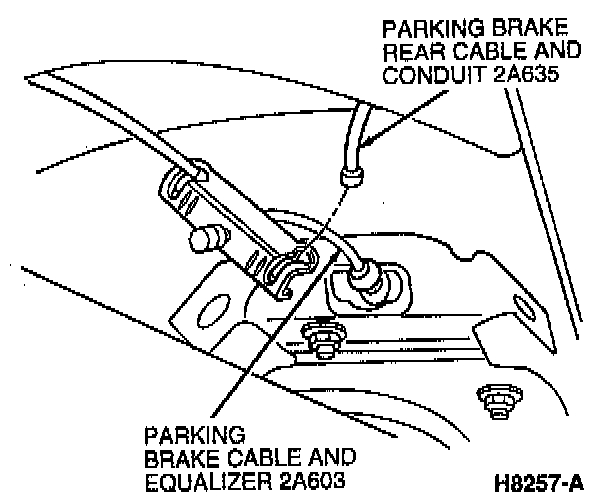

4. Disengage parking brake rear cable and conduits from parking brake cable and equalizer.
5. Lower vehicle.
6. Remove console. Refer to Body and Frame.
7. Route parking brake cable and equalizer through hole in floor pan.
8. Remove parking brake cable and equalizer from parking brake control.

INSTALLATION
1. Position parking brake cable and equalizer on parking brake control.
2. Release cable tension as described.
3. Route parking brake cable and equalizer through hole in floor pan. Install grommet into opening.
4. Raise and support vehicle.
5. Connect parking brake rear cable and conduits to parking brake cable and equalizer.
6. Install heat shields and raise exhaust system.
7. Lower vehicle.
8. Install console.
9. Operate parking brake control several times to set adjuster.
