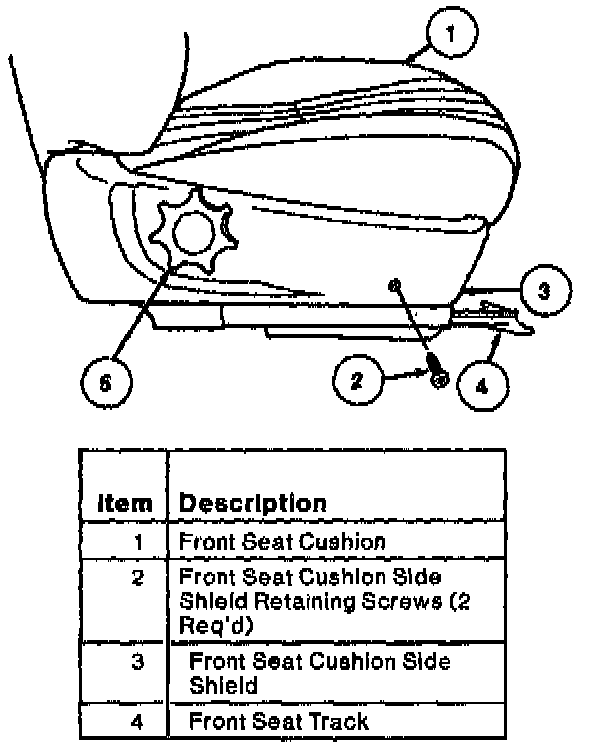

Seat Side Trim Panel

REMOVAL






1. Remove two screws retaining front seat cushion side shield to front seat cushion frame and spring.
2. Pull rear of front seat cushion side shield straight away from seat to release retaining clip.
3. Pull front of front seat cushion side shield upward to release retaining clip.
4. Pull seat regulator control knob from seat regulator control switch.
5. Remove two screws retaining seat regulator control switch to front seat cushion side shield.
6. Remove front seat cushion side shield.

INSTALLATION
1. To install, reverse Removal procedure.
