Seat Back

REMOVAL
1. Remove front seat.
2. Remove manual recliner, if equipped.
3. Disconnect wiring harness to front seat back pad adjusting pump and front seat back power recliner if equipped.

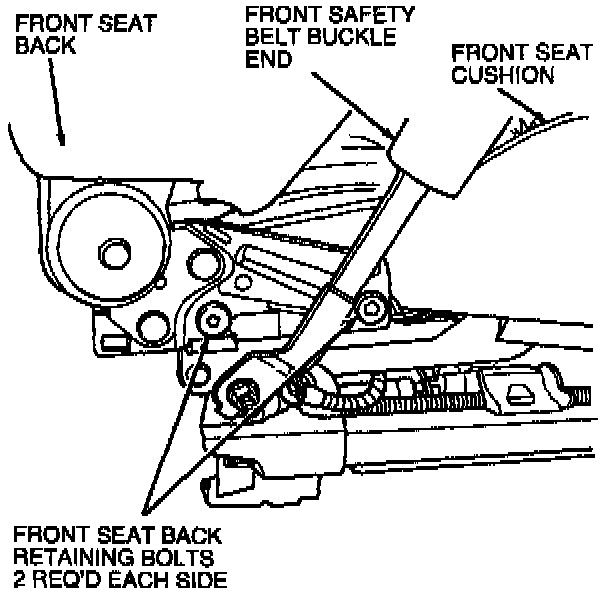

4. Remove four bolts (two each side) retaining front seat back frame to front seat cushion frame and spring. Remove front seat back.

INSTALLATION
1. To install, reverse Removal procedure.
