With 60/40 Split Bench Seat

REMOVAL
1. Fold rear seat back forward.

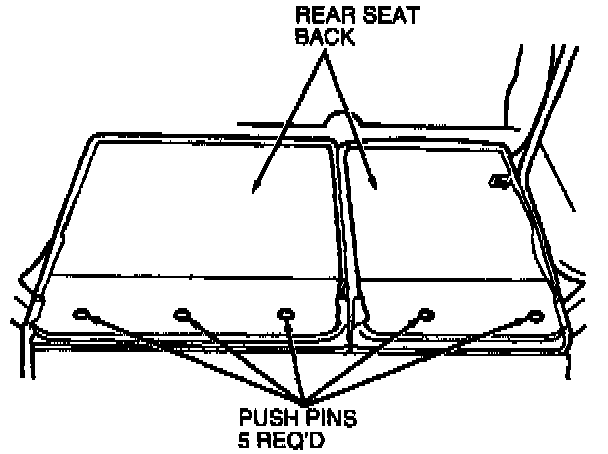

2. Remove push pins retaining lower trim to rear of rear seat back.
3. Fold rear seat back trim upward to access rear seat back retaining bolts.

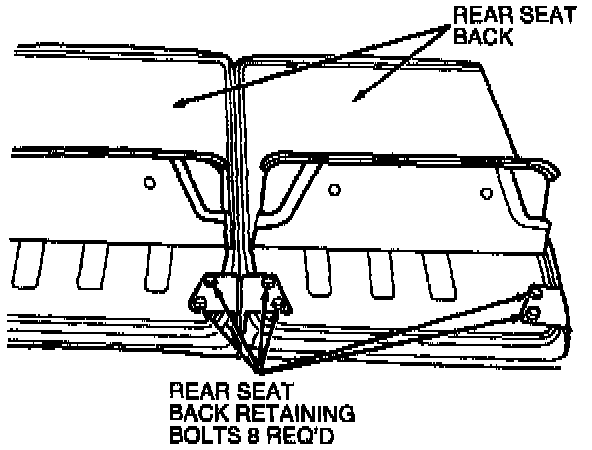

4. Remove rear seat back retaining bolts. Remove rear seat back.
5. Remove bolts retaining rear seat back hinge to body structure. Remove seat back hinge.

INSTALLATION
1. To install, reverse Removal procedure.
2. Tighten rear seat back retaining bolts to 20-26 Nm (15-19 ft lb).
3. Tighten rear seat back hinge to floor bolts to 48 Nm (35 ft lb).
