Rear Seat Back Outer Extension

REMOVAL

1. Fold rear seat back forward.

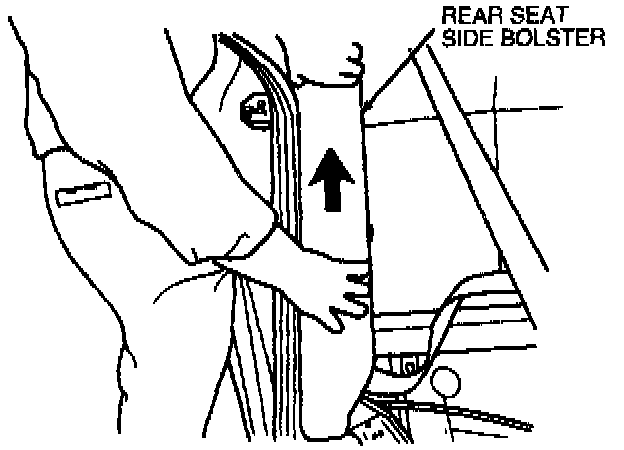

2. Push inward. Pull straight upward on rear seat back side bolster to disengage retaining clips. Remove rear seat back side bolster.

INSTALLATION
1. To install, reverse the removal procedure.
