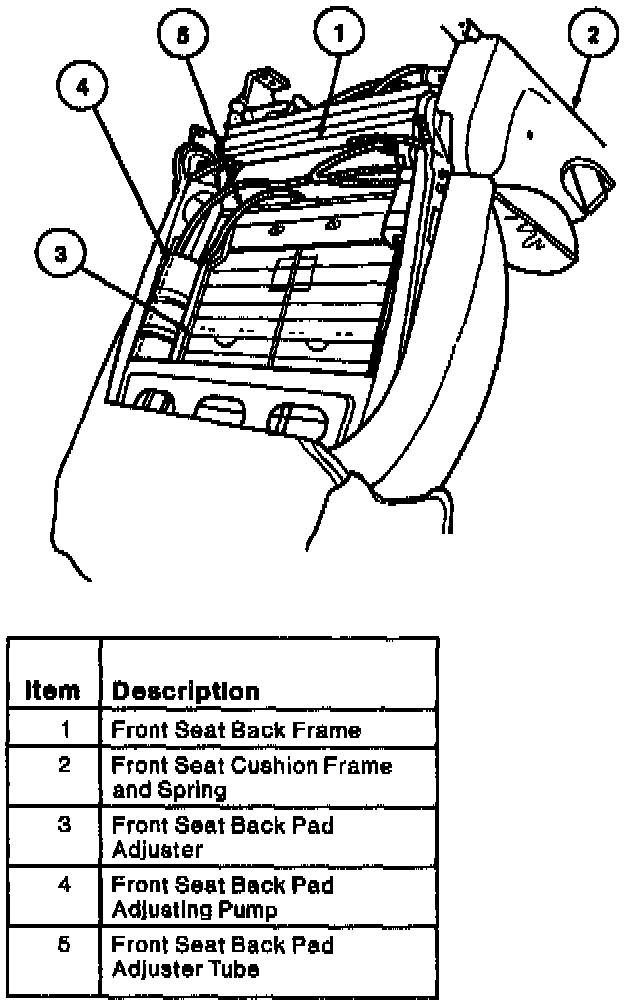

Front Seat Back Pad Adjusting Pump

REMOVAL
1. Disconnect battery ground cable.
2. Remove front seat and place upside down on a clean surface.
3. Remove front seat back cover.
4. Disconnect wiring harness to front seat back pad adjusting pump. Remove wire ties retaining harness to front seat back frame.
5. Disconnect front seat back pad adjusting tube from front seat back pad adjusting pump.






6. Remove two wire ties retaining front seat back pad adjusting pump to front seat back frame. Remove front seat back pad adjusting pump.

INSTALLATION
1. To install, reverse Removal procedure.
