Front Manual

REMOVAL

1. Remove front seat.

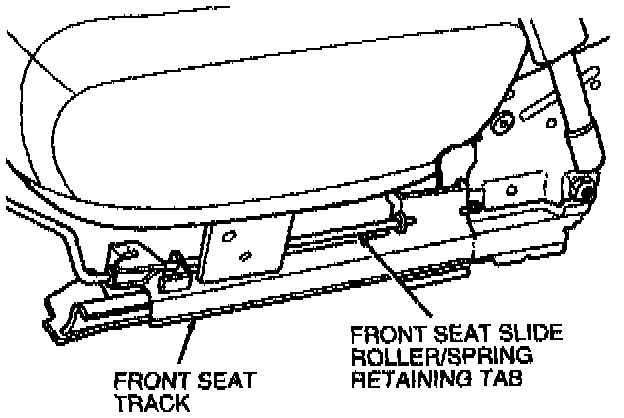

2. Bend slide roller/spring plate retaining tag upward.
3. Move slide roller/spring plate rearward in front seat track.

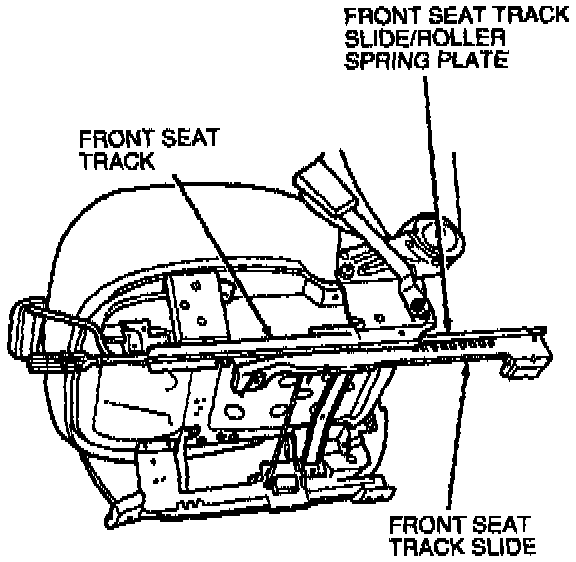

4. Slide front seat track forward and remove slide roller/spring plate.
5. Pull front seat track release handle.
6. Rotate lower front seat track and slide front seat track out of upper front seat track
7. Pull front seat track slides away from lower front seat track.
8. Lift front seat slide out of upper front seat track.

INSTALLATION
1. To install, reverse Removal procedure.
