Head Restraints

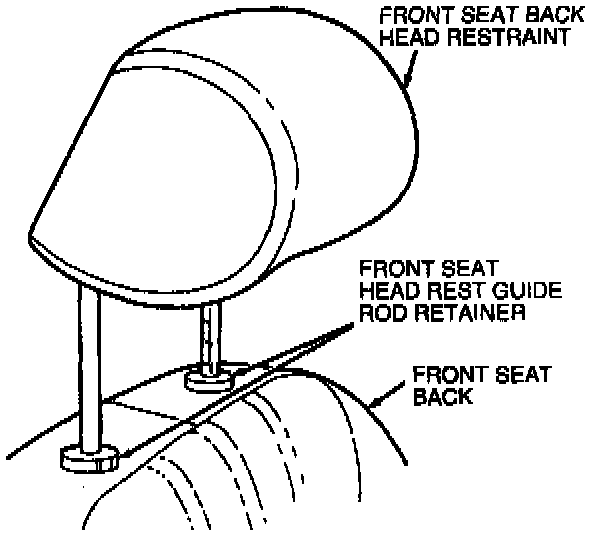

The front seat back head restraint has two posts which have a notch to engage a spring-loaded catch in the front seat head rest guide rod retainer.
^ The front seat back head restraint can be adjusted up or down and tilted forward or rearward.






^ Pulling up on the front seat back head restraint will raise it. Pushing down will return it to the normal position.
