Sliding Roof Glass

REMOVAL

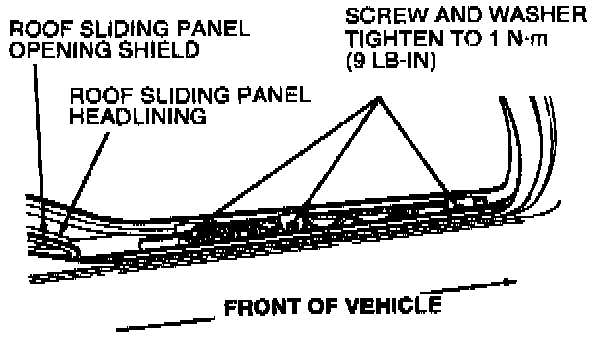

1. With roof opening glass closed, remove three screws retaining roof sliding panel opening shield at front of roof opening glass frame.
2. Raise the roof opening glass to vent position. Remove six screws (three each side) retaining roof opening glass frame to roof sliding panel guides.
3. From outside of vehicle, lift roof opening glass from sliding roof panel opening.

Installation
1. To install, a second technician is needed to position roof opening glass into vehicle. Align roof opening glass and reverse Removal procedure.
2. Tighten screws to 0.8-1.5 Nm (7-13 in lb).
