Roof Sliding Panel Opening Shield

REMOVAL

1. Remove roof opening glass.
2. Remove roof sliding panel guides.

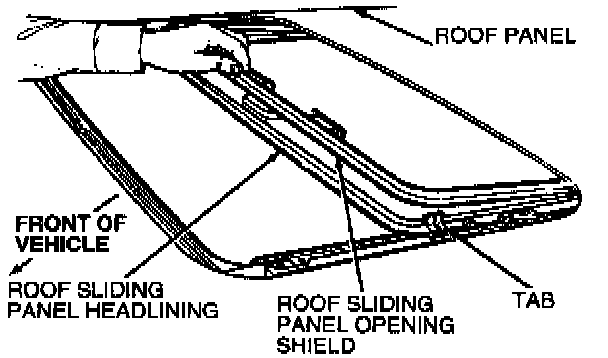

3. Slide roof sliding panel opening shield forward and raise upward out of sliding roof panel opening.

INSTALLATION
1. To install, reverse Removal procedure.
