Glass Panel Height
HEIGHTThe correct position of the roof opening glass to the roof is as follows:
^ Front Corners: Flush to 1 mm (0.0393 inch) below roof.
^ Rear Corners: Flush to 1 mm (0.0393 inch) above roof.
1. Cycle roof opening glass from full open to full closed position.
2. Remove three screws retaining roof sliding panel opening shield along front of the opening inside of vehicle and slide roof sliding panel opening shield and roof sliding panel headlining fully rearward to expose six retaining roof opening glass roof (three each side).
3. Loosen six screws retaining roof opening glass. Then, tighten them so that they are snug but not tightened to specification.
4. To adjust only the front of roof opening glass, loosen the center and front screws. To adjust only the back of the roof opening glass, only loosen the center and rear screws.
5. To check height setting, open the roof opening glass about four inches, then return to the closed position.
6. Tighten the screws retaining roof opening glass.

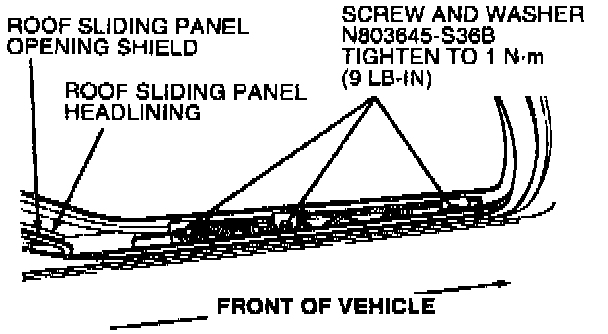

7. Slide roof sliding panel opening shield forward and replace three retaining screws. Tighten screws to 1 Nm (9 in lb).
