Outside Mirror Glass

REMOVAL

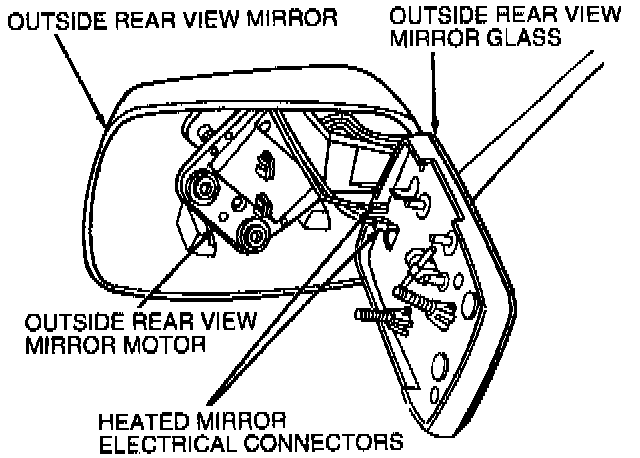

1. Push inner edge of outside rear view mirror glass into housing.






2. Grip outer edge of outside rear view mirror glass and pull out until outside rear view mirror glass snaps out of outside rear view mirror motor.

INSTALLATION

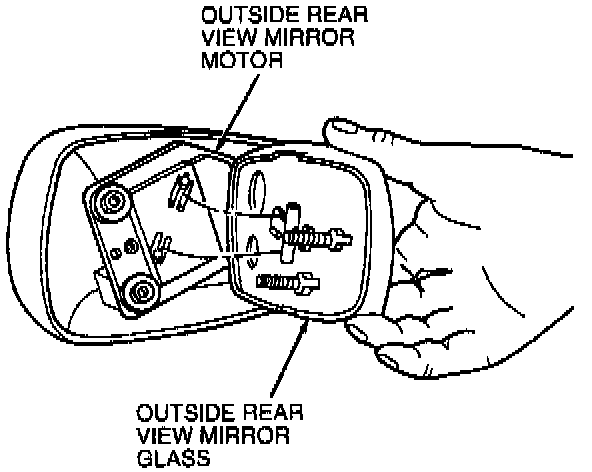

1. To install, align the two outside rear view mirror plate retainers and the cross-tee on the outside rear view mirror glass mounting back to the holes and snap tabs on the outside rear view mirror motor.
2. Firmly push the outside rear view mirror glass into place with the palm of your hand until it locks into place.
