Method Two

SPECIAL SERVICE TOOLS REQUIRED

Description Tool Number
Rear View Mirror Remover T91T-17700-A

REMOVAL

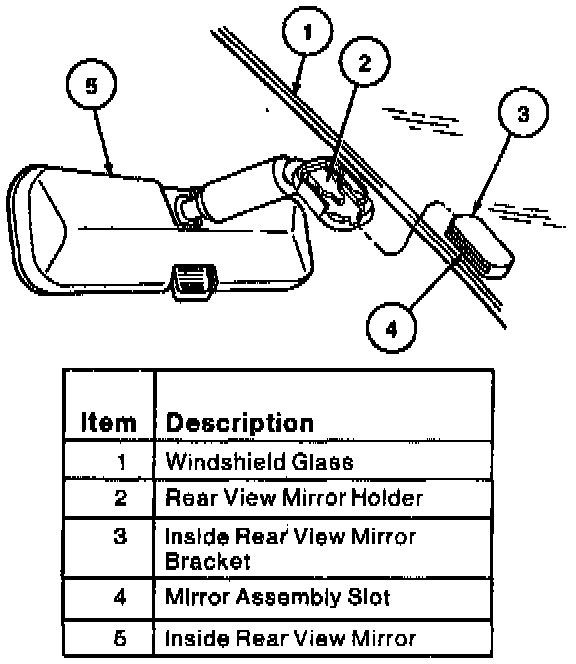

1. Grasp inside rear view mirror firmly.

CAUTION: Inside rear view mirror is of the breakaway design excessive force in any direction will cause damage to inside rear view mirror.

2. Insert small flat-bladed screwdriver into slot until inside rear view mirror retainer is contacted.






3. While pushing on inside rear view mirror retainer with screwdriver, pull up on inside rear view mirror to remove from windshield glass.

INSTALLATION






1. Slide mirror mount downward onto inside rear view mirror bracket, using Rear View Mirror Replacer Tool T94P-17700-AH to complete installation onto inside rear view mirror bracket.
