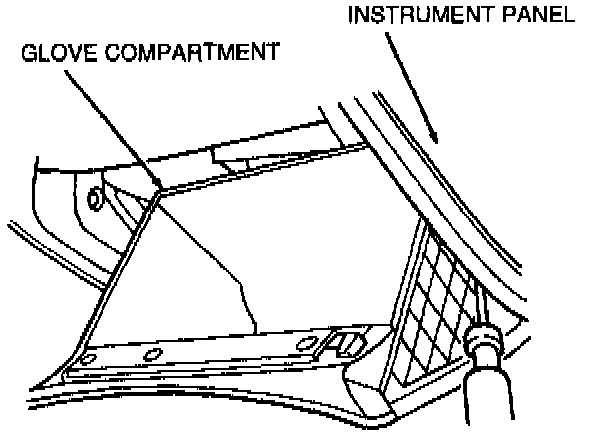

Glove Compartment Replacement

REMOVAL
1. Open glove compartment.
2. Remove three screws retaining glove compartment to instrument panel.






3. Carefully push in on side of glove compartment to release stops.
4. Remove glove compartment.

INSTALLATION
1. To install, reverse Removal procedure.
