Glove Compartment Door Latch

REMOVAL

1. Open glove compartment.

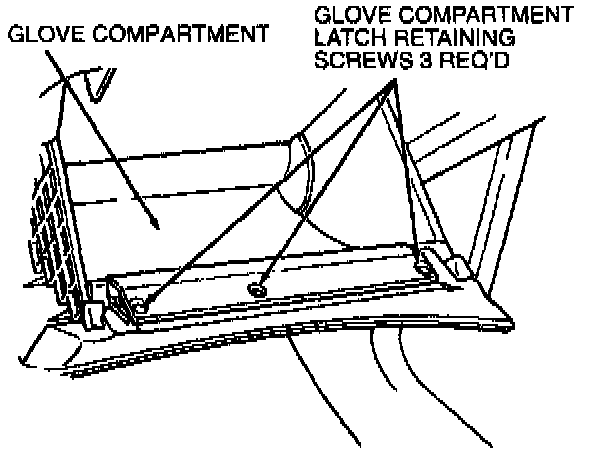

2. Remove three screws retaining glove compartment door latch to glove compartment.

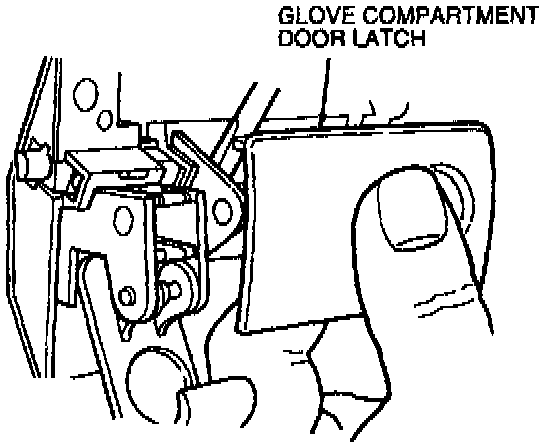

3. Carefully slide glove compartment door latch through opening in glove compartment. Remove glove compartment door latch.






4. Push handle to LH side and remove from glove compartment door latch.

NOTE: Note position of handle spring before removal.

INSTALLATION
1. To install, reverse Removal procedure.
