Without Armrest

REMOVAL
1. Disconnect battery ground cable.

NOTE: When the battery has been disconnected or reconnected, some abnormal drive symptoms may occur while the powertrain control module relearns its adaptive strategy. The vehicle may need to be driven 18 km (10 miles) or more to relearn the strategy.

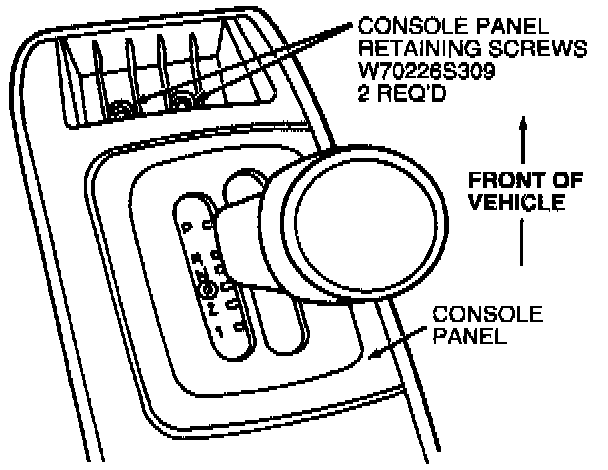

2. Remove two screws retaining front of console panel to front floor pan.
3. Remove gearshift lever knob.
4. Remove console cup holder.






5. Remove three screws retaining rear of console panel to front floor pan.
6. Raise floor console panel and ease parking brake lever boot over parking brake release handle. Remove floor console panel.

INSTALLATION
1. To install, reverse Removal procedure.
