Vehicle Identification Number






VEHICLE IDENTIFICATION NUMBER (VIN)

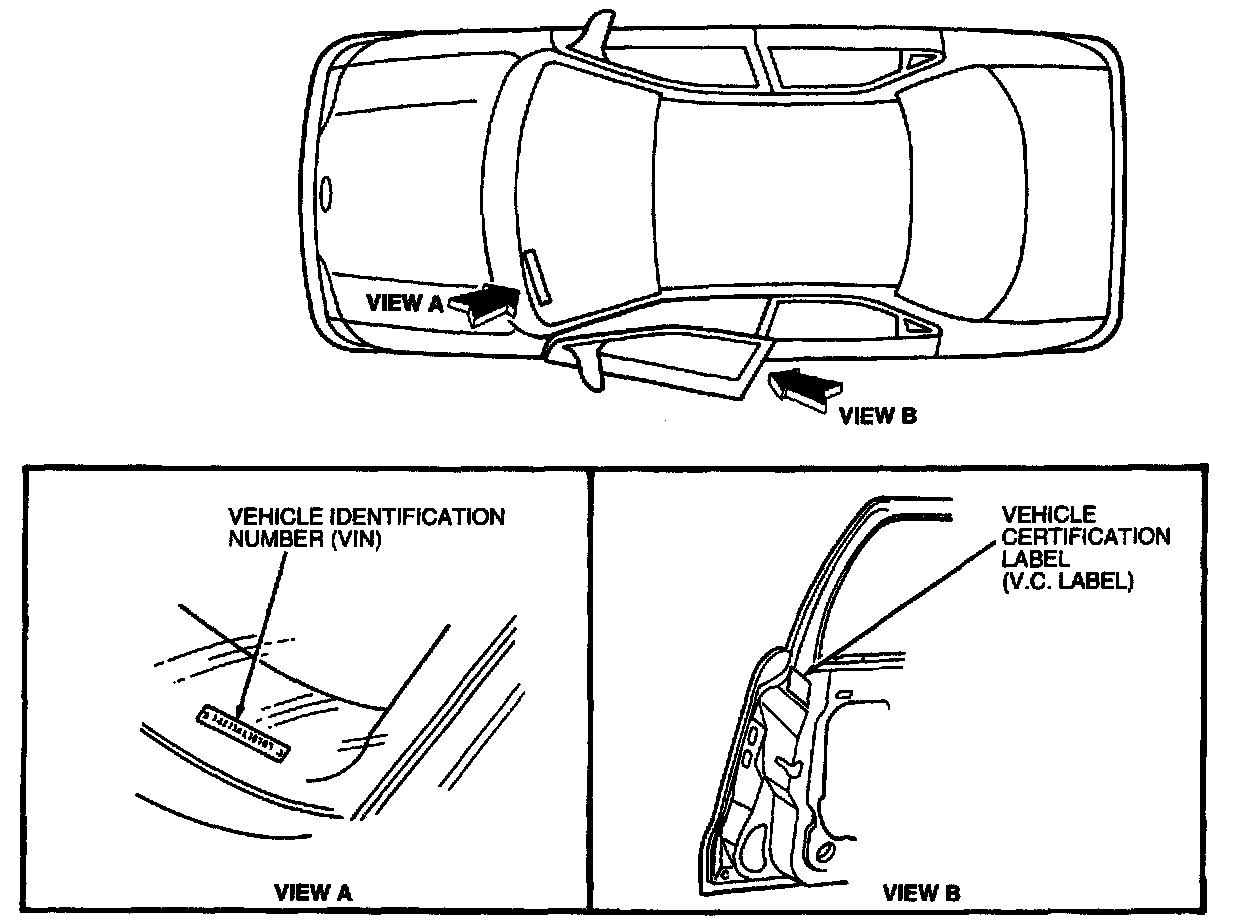

The official Vehicle Identification Number (VIN) for title and registration purposes is stamped on a metal plate that is fastened to the instrument panel close to the windshield glass on the LH side of the vehicle and is visible from outside.

The Vehicle Identification Number is also located on the vehicle certification label.







FUNCTION
The vehicle certification label also contains a 17-character vehicle identification number. This number is used for warranty identification of the vehicle and indicates the following:
- Manufacturer
- Make of vehicle
- Type of vehicle
- Type of restraint system
- Line
- Series
- Body type
- Engine
- Model year
- Assembly plant production sequence number

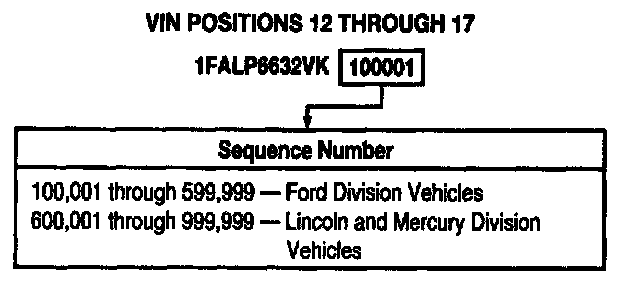

The last six digits of the vehicle identification number indicate the consecutive unit number of each unit built at each assembly plant. The consecutive unit numbers begin as follows:
- 100,001 through 599,999: Ford Division vehicles.
- 600,001 through 999,999: Lincoln and Mercury Division vehicles.

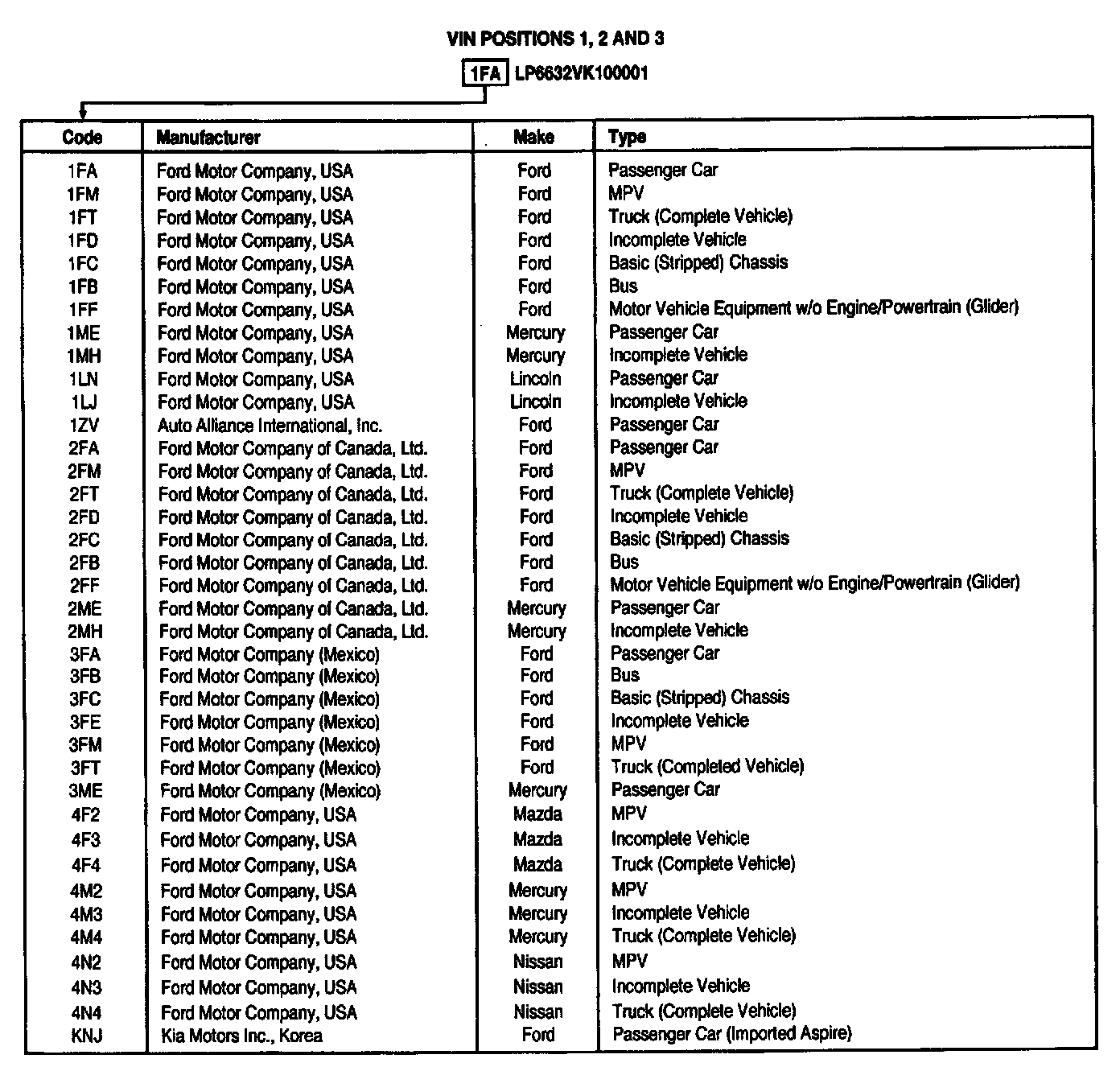

World Manufacture Identifier

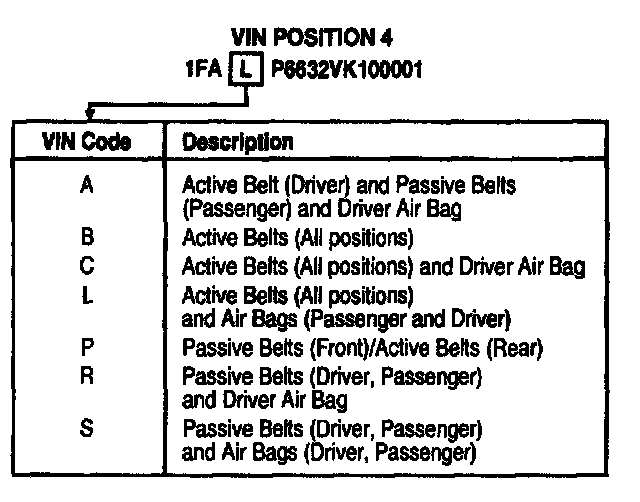

Restraint System Type

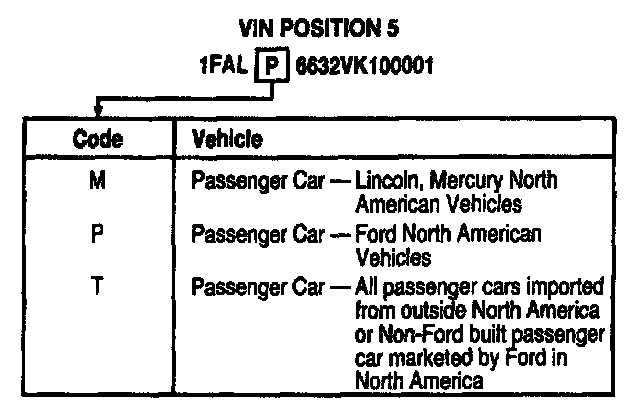

Manufacturer Specification

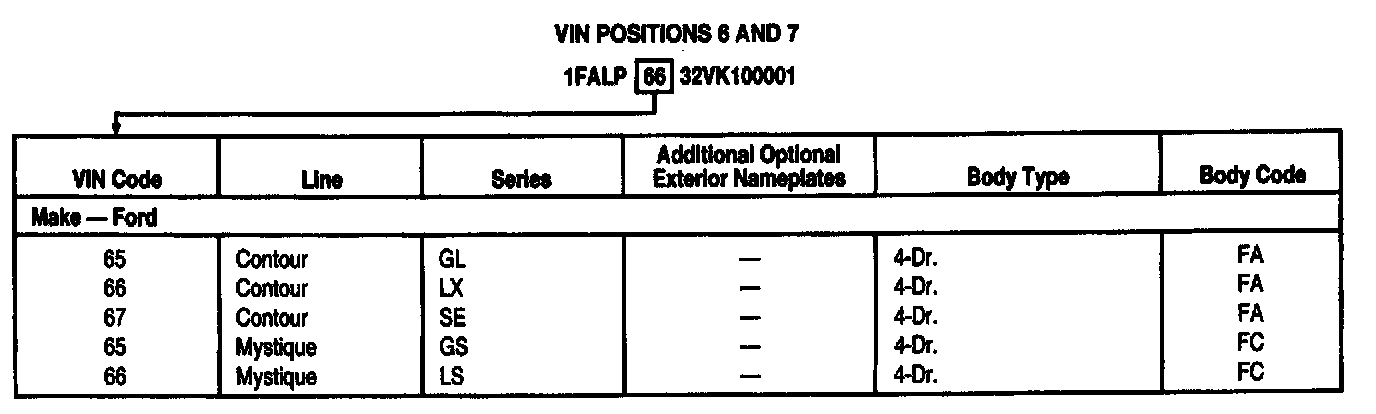

Line, Series, Body Type

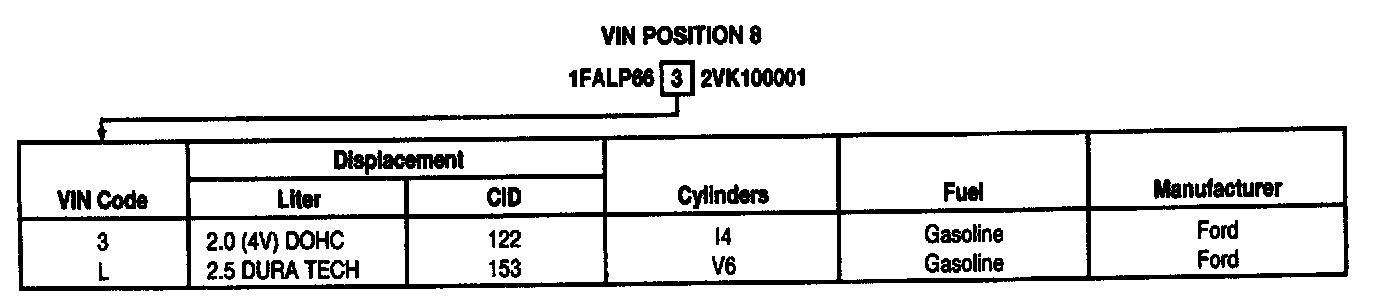

Engine Type

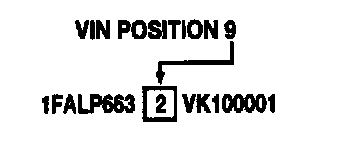

Check Digit

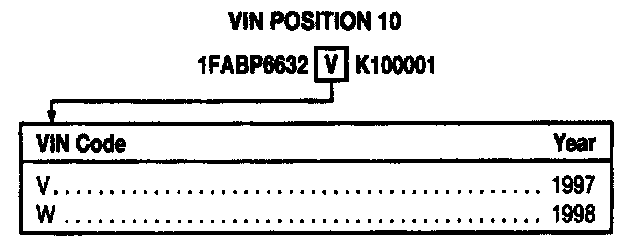

Vehicle Model Year

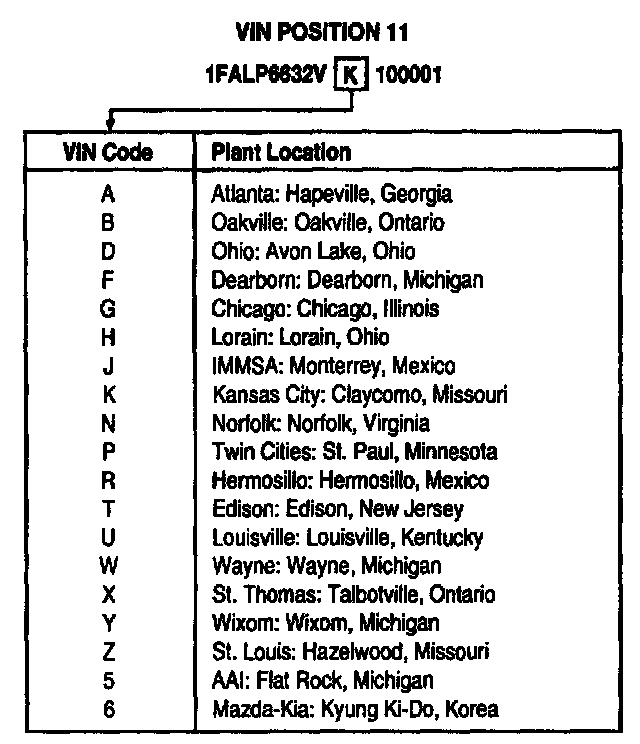

Assembly Plant







Production Sequence Number
